61 21 010 Removing and installing or replacing battery
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe safety instructions
for handling vehicle battery.
Follow instructions on intelligent battery sensor (IBS) .
Follow instructions on intelligent battery sensor (IBS) .
IMPORTANT:
Do not under any circumstances pull or lever safety battery terminal off by force.
Necessary preliminary tasks:
- Remove power distributor

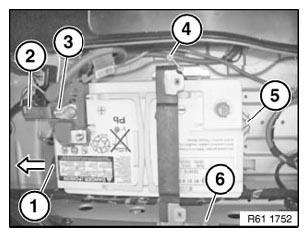

Detach vent (1) in direction of arrow.
Open cover (2) and release nut (3). Tightening torque, see 61 21 1AZ in 61 21 BATTERY WITH TERMINAL .
Detach safety battery terminal towards top, lay to one side and secure.
Release screws (4, 6) and remove brackets.
Release screw (5) and remove holder.
Lift battery out of luggage compartment.
Installation:
Make sure battery is correctly seated in associated fixture.
Replacing version with intelligent battery sensor (IBS) :
- Register battery replacement
- Read out fault memory, clear fault memory entries if necessary
