Automatic Transmission: Removal

WARNING: This page is about a different car, the 2005 BMW X3 and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Numbers in text refer to numbers in figures.
  1. Disconnect battery.
  2. Remove front underbody protection. Remove reinforcement plate. See Fig 1 .
  3. Remove exhaust system as necessary to remove transmission. See EXHAUST article.
  4. Remove heat shield.
  5. Unfasten screws and remove front propeller shaft at transfer box and tie to one side. See FRONT DRIVE SHAFT article.
  6. Supporting engine and transmission: install Special Tool (11 0 250) between dome cross-brace and engine suspension eye and secure with dowel pin. See Fig 2 . Pretension special tool with adjusting screw (1) to measurement "A". Installation position, measurement "A" = 36 cm.
  7. Remove propeller shaft from transmission. See DRIVE SHAFTS & UNIVERSAL JOINTS article. Release center bearing. Tie propeller shaft to one side.
  8. Grip clamping sleeve (1) and loosen selector lever nut (2). See Fig 3 .
  9. Release screws (1). See Fig 4 . Remove holder with shift cable (2).
  10. Unscrew bolt (1). See Fig 5 . Disconnect hydraulic lines (2) to transmission fluid cooler.
  11. Release screw (1) on engine carrier. See Fig 6 . Lay hydraulic lines to one side.
  12. Lift off cover. See Fig 7 .
  13. Crank engine at vibration damper in direction of rotation until screw is visible in opening. See Fig 8 . Release all screws of torque converter with Special Tool (24 1 110). Crank engine further and release remaining 2 screws.
  14. Protect torque converter from slipping out. To do so, insert Special Tools (24 4 131 / 24 4 137) in opening in transmission housing. Clamp torque converter. See Fig 9 .
  15. Unfasten screws and remove cross member. See Fig 10 .
  16. Detach plugs (1) and (2) from servomotor. See Fig 11 .
  17. Unlock plug (1) and remove. See Fig 12 . Unclip cable from transmission housing.
    18. CAUTION: Risk of damage: When lowering the transmission, make sure the engine does not rest against the bulkhead.
  18. Lowering transmission: turn Special Tool (11 0 250) back with adjusting screw (1) to measurement "A". See Fig 2 . Transmission removal position, measurement "A" = approx. 34 cm.
  19. Support transmission with Special Tools (00 2 030 / 24 5 301 / 24 5 305). See Fig 13 .
  20. Unscrew bolt (1) See Fig 14 .
  21. Unfasten screws. See Fig 15 . Pull transmission of engine towards rear and lower.
Fig 1: Installing Reinforcement Plate
G00374782Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Suspending Engine In Installation Position
G00374777Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Releasing Selector Lever Nut
G00367853Courtesy of BMW OF NORTH AMERICA, INC.

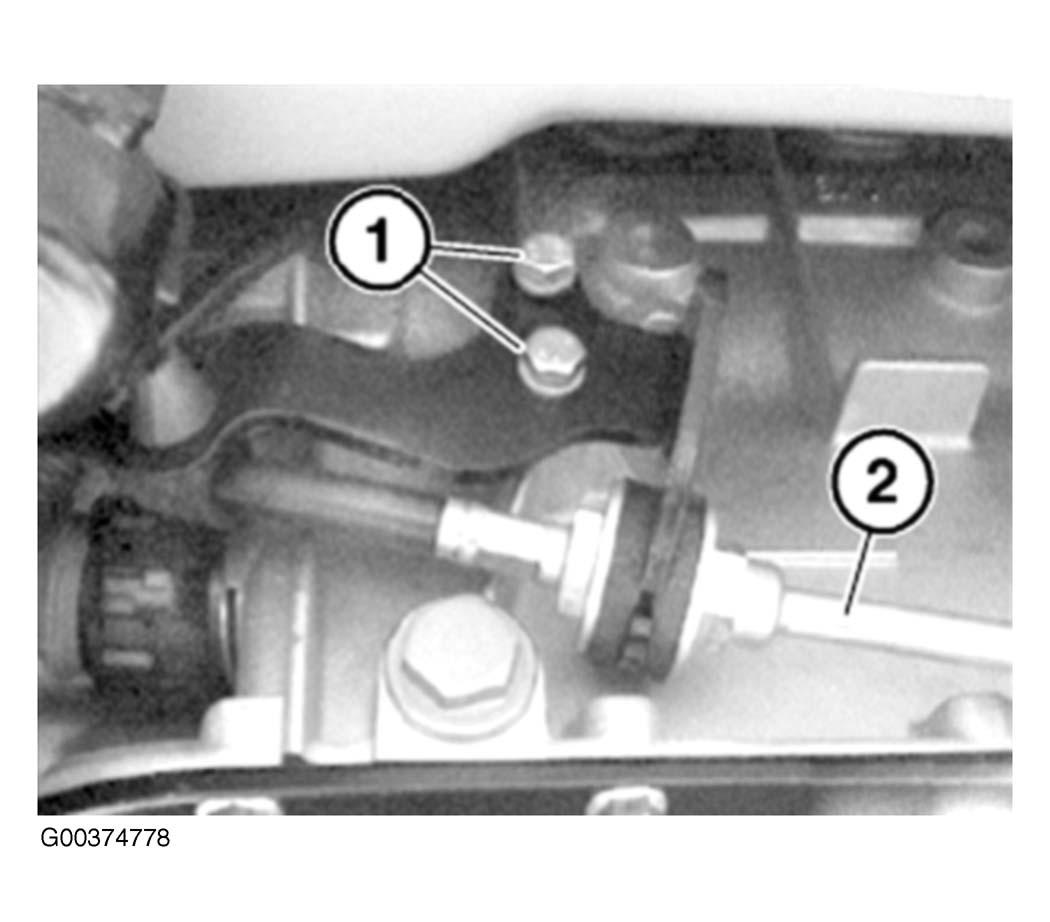

Fig 4: Removing Holder With Shift Cable
G00374778Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Disconnecting Lines To Transmission Fluid Cooler
G00374748Courtesy of BMW OF NORTH AMERICA, INC.

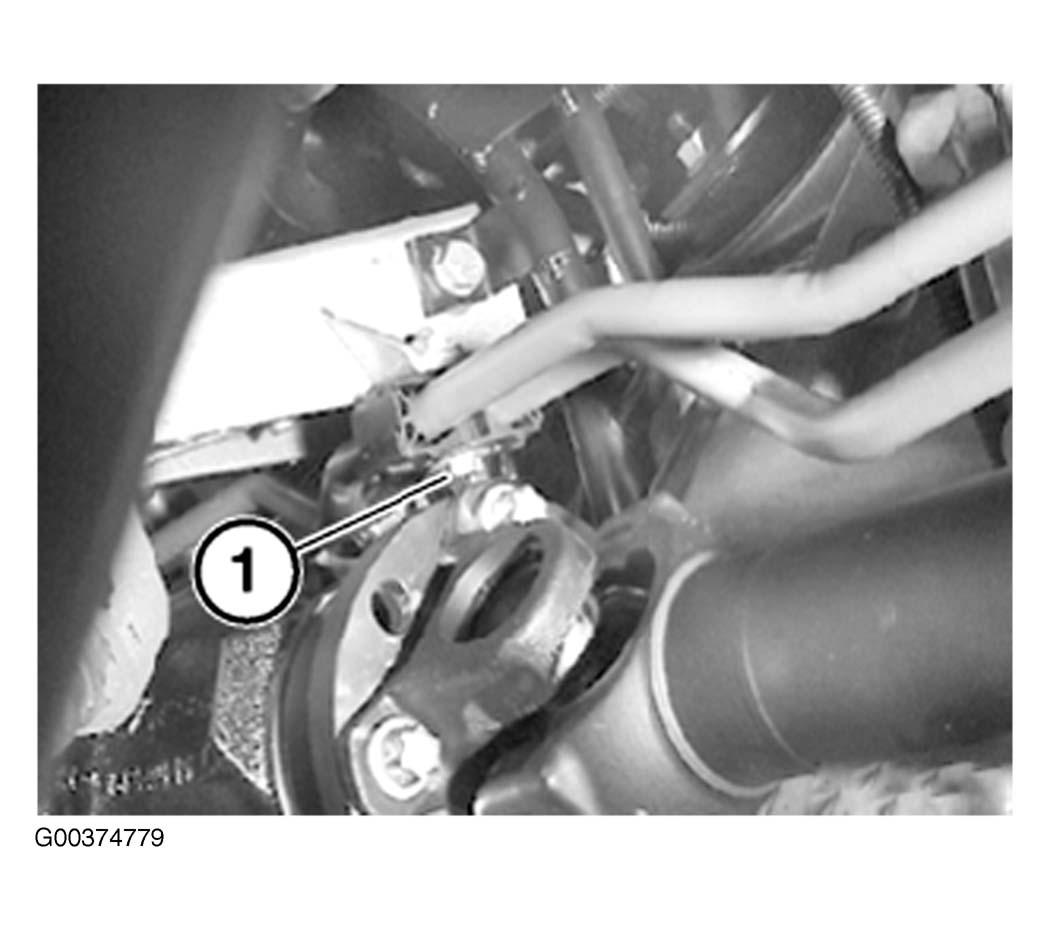

Fig 6: Locating Screw On Engine Carrier
G00374779Courtesy of BMW OF NORTH AMERICA, INC.
Fig 7: Removing Cover
G00367862Courtesy of BMW OF NORTH AMERICA, INC.
Fig 8: Releasing Screws Of Torque Converter
G00374776Courtesy of BMW OF NORTH AMERICA, INC.
Fig 9: Clamping Torque Converter
G00374720Courtesy of BMW OF NORTH AMERICA, INC.

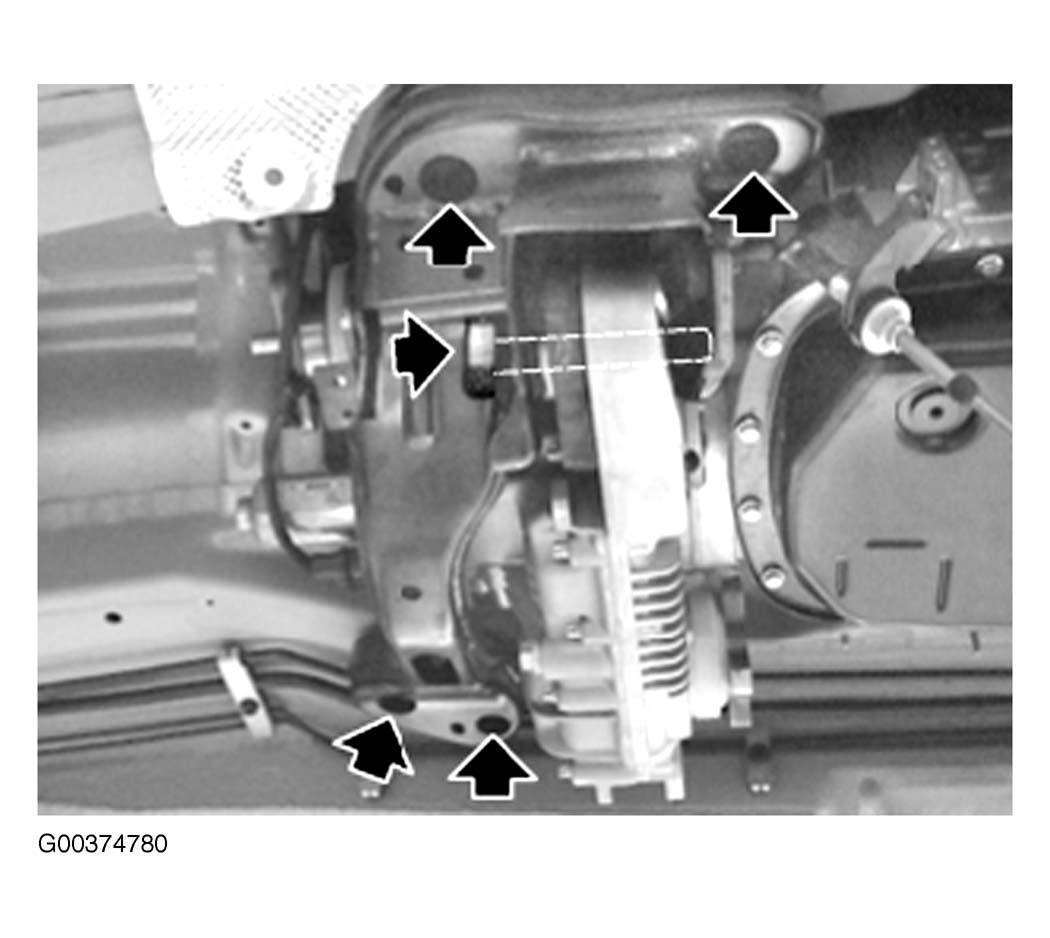

Fig 10: Removing Cross-Member
G00374780Courtesy of BMW OF NORTH AMERICA, INC.

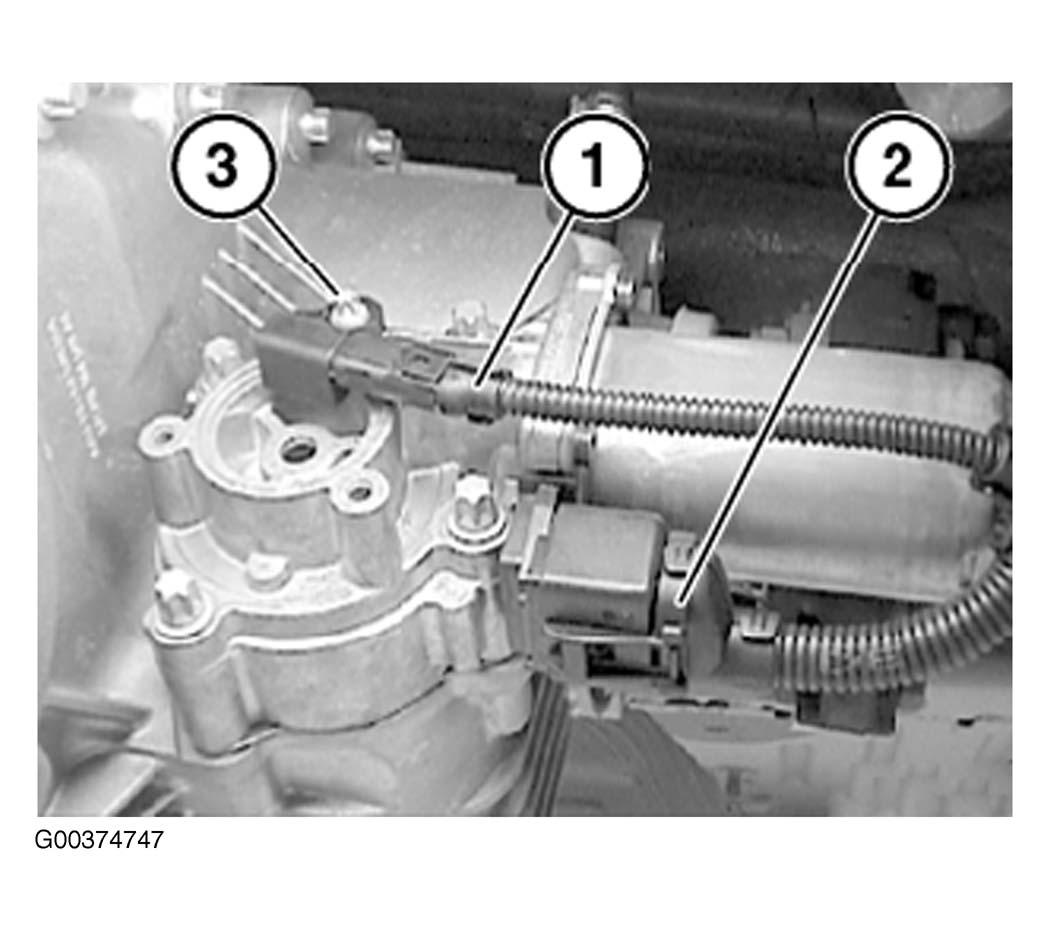

Fig 11: Locating Plugs
G00374747Courtesy of BMW OF NORTH AMERICA, INC.
Fig 12: Unlocking Plug
G00374743Courtesy of BMW OF NORTH AMERICA, INC.
Fig 13: Supporting Transmission
G00367855Courtesy of BMW OF NORTH AMERICA, INC.
Fig 14: Locating Guard Bolt
G00374781Courtesy of BMW OF NORTH AMERICA, INC.
Fig 15: Removing/Installing Transmission-To-Engine Bolts
G00056372Courtesy of BMW OF NORTH AMERICA, INC.
