52 26 400 Replacing seat cover for rear seat (through-loading system)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

Necessary preliminary tasks:

Remove rear seat, see 52 26 005 Removing and installing/replacing rear seat (through-loading system)

Overview of attachment points of cover to seat pan:

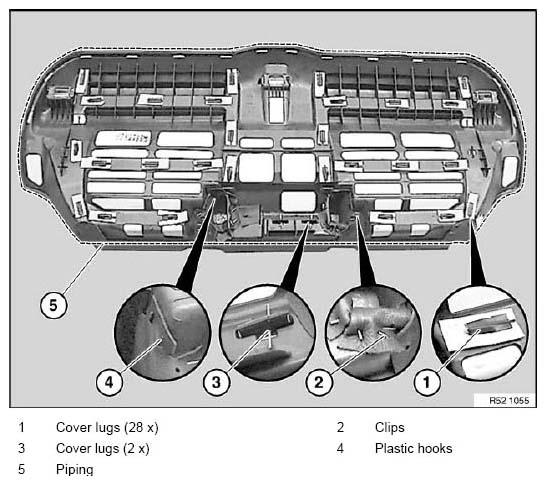

Fig 1: Cover Lugs, Plastic Hooks And Piping

G04789199

Courtesy of BMW OF NORTH AMERICA, INC.

Removing seat cover:

Remove retainers (2).
Unhook cover from plastic hooks (4)
Detach retaining elements from cover tabs (1 & 3).

Feed out piping.

Fig 2: Feeding Out Piping

G04789200

Courtesy of BMW OF NORTH AMERICA, INC.

Slide cover lugs with special tool 00 9 323 through opening in seat pan.

Carefully remove seat pan.

Fig 3: Sliding Cover Lugs With Special Tool

G04789201

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed cover lugs (1) through openings (2) in padding and before laying on seat pan pull through fully on rear side.

Push retaining elements back onto cover lugs.

Reattach seat cover to plastic hooks.

Attach new clips with pneumatic tacker.

Fig 4: Cover Lugs

G04789202

Courtesy of BMW OF NORTH AMERICA, INC.
