37 14 512 Replacing rear ride-height sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Disconnect connector connection. Release nut (1) and disconnect jointed rod. Tightening torque, see 37 14 4AZ in 37 14 ELECTRIC COMPONENTS . Release screws (2) and remove ride-height sensor. Tightening torque, see 37 14 3AZ in 37 14 ELECTRIC COMPONENTS .

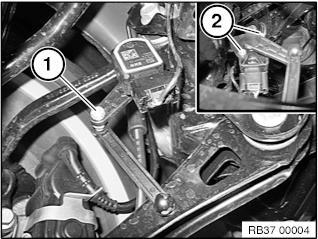

Fig 1: Release Nut (1) And Disconnect Jointed Rod

Courtesy of BMW OF NORTH AMERICA, INC.

After installation: Check headlight setting, correct if necessary. Carry out ride-height adjustment (on vehicles with VDC).
