41 11 301 Replacing Cover For Longitudinal Member With Left Door Pillar (Partial Replacement B - Pillar)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, General, see 41 0 Contents of Body, General .

Place vehicle on straightening bench.

Following new body parts are required:

(1) B-pillar with entrance
(2) Shaped part, B-pillar, inner

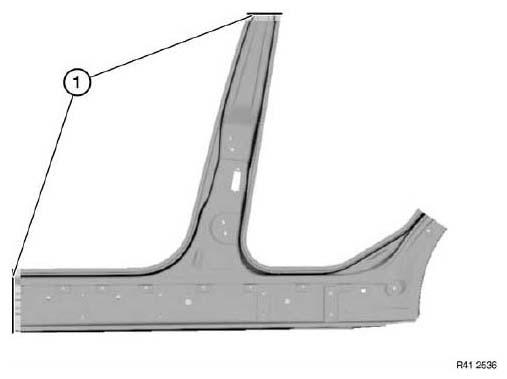

Fig 1: B-Pillar With Entrance And Shaped Part, B-Pillar, Inner

Courtesy of BMW OF NORTH AMERICA, INC.

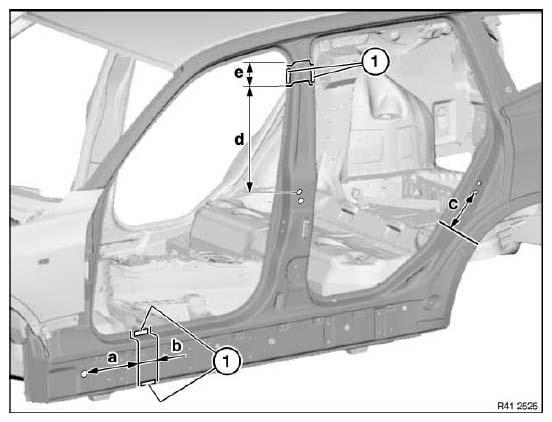

Fig 2: Weld Joints In Areas Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

Measurement a = approx. 220 mm behind hole dia. 20 mm.

Measurement b = approx. 60 mm behind cut a.

Measurement c = approx. 200 mm from middle of lower lock striker screw point.

Measurement d = approx. 450 mm above upper door hinge mounting.

Measurement e = approx. 80 mm above cut d.

Open weld joints in areas (1).

Installation:

Weld in reinforcing panels, see 41 00... Welding in reinforcement plate (steel plate) at all severance cuts.

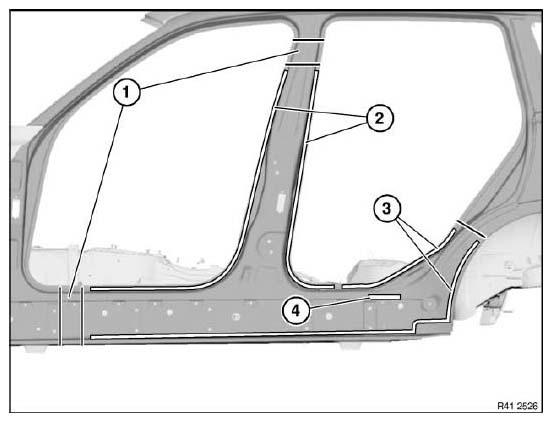

Fig 3: Metal Sections And Weld Joints In Areas Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Remove metal sections (1).

Open weld joints in areas (2) and (3).

Longitudinal member cover is bonded to inner frame in area (4).

IMPORTANT: Cut two metal plates in areas (2).
Cut outer metal plate only in areas (3).

Installation:

Cut-out metal sections (1) are required again for sealing.

Mark severance cut in accordance with specified measurement and cut.

IMPORTANT: Cut outer metal plate only for following severance cut.

Measurement a = 490 mm above upper door hinge mounting.

Installation:

Weld in reinforcement plate at severance cut, see 41 00... Welding in reinforcement plate (steel plate) .

Fig 4: Reinforcement Plate At Severance Cut Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with specified measurement and cut.

Measurement a = 250 mm behind hole dia. 20 mm.

Installation:

Weld in reinforcement plate at severance cut, see 41 00... Welding in reinforcement plate (steel plate) .

Fig 5: Reinforcement Plate At Severance Cut Dimension (Behind Hole)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: View from inside

Open weld joints in areas (1).

Open adhesive bond in area (2).

Fig 6: Weld Joints And Adhesive Bond In Areas

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: View from below

Open weld joints in areas (1).

Fig 7: Weld Joints In Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Sheet Panel On Weld Joints Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cuts (1) on new part in accordance with previous severance cuts and cut.

IMPORTANT: Cut outer plate only for severance cuts (2).

Measurement a = approx. 220 mm behind hole dia. 20 mm.

Measurement b = approx. 60 mm behind cut a.

Measurement c = approx. 450 mm above upper door hinge mounting.

Measurement d = approx. 80 mm above cut d.

Open weld joints on sheet panel (3) and remove component.

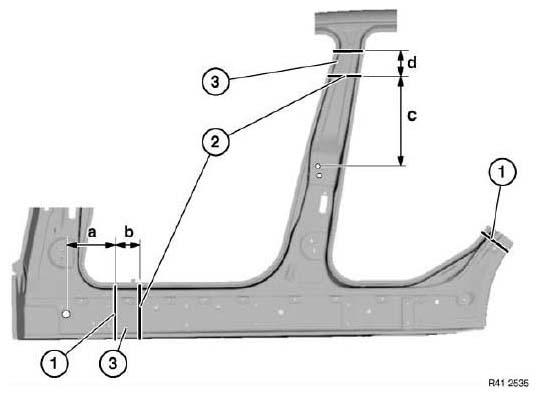

Fig 9: Mark Severance Cuts

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cuts (1) on new part in accordance with severance cuts on vehicle and cut.

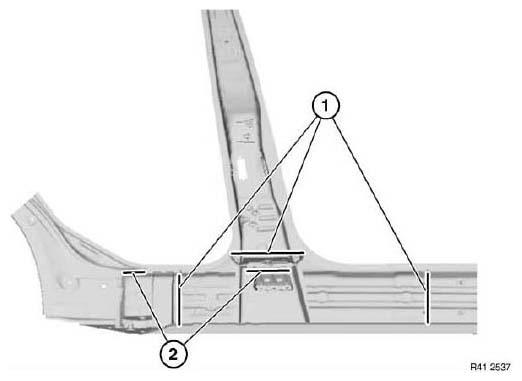

Fig 10: Mark Severance Cuts And Adhesive In Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Apply window glass adhesive, see 41 00... Installing a cavity bulkhead (expanded) to cavity acoustic baffles (1).

Apply adhesive, see 41 00... Bonding steel parts in areas (2).

Installation information:

Adjust new part to fit with straightening attachment or universal mount.
