41 35 401 Replacing Rear Left Side Panel (Partial Replacement, Door Opening)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, General, see 41 0 Contents of Body, General .

Use only approved spot-welding apparatus for repairs, see 41 00... Workshop equipment

Following new body parts are required:

(1) Side panel, rear

Fig 1: Side Panel, Rear And D-Pillar Shaped Part

Courtesy of BMW OF NORTH AMERICA, INC.

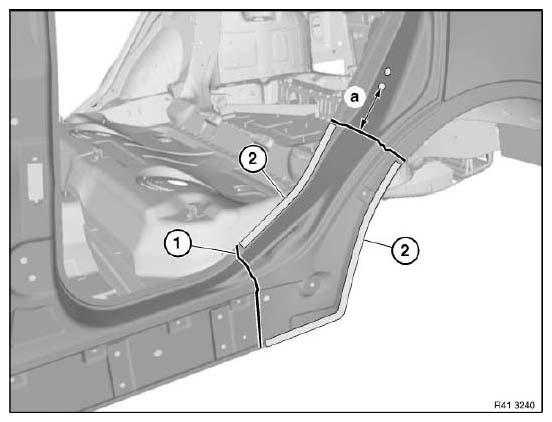

Fig 2: Mark Severance Cut And Weld Joints In Areas Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

Mark severance cut (1) in accordance with new part on vehicle.

IMPORTANT: Cut outer metal sheet only.

Measurement a = approx. 200 mm from middle of lower lock striker screw point.

Open weld joints in areas (2).

Installation information:

Apply window glass adhesive to cavity acoustic baffle (3), see 41 00... Installing a cavity bulkhead (expanded) .
Weld in reinforcing panels at all severance cuts., see 41 00... Welding in reinforcement plate (steel plate) .
