41 35 105 Replacing Rear Left Side Panel (Partial Replacement Before Longitudinal Member Cover)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, General, see 41 0 Contents of Body, General .

Use only approved spot-welding apparatus for repairs, see 41 00... Workshop equipment

Following new body parts are required:

(1) Side panel, rear
(2) D-pillar shaped part (not shown)

Fig 1: Side Panel, Rear And D-Pillar Shaped Part (Not Shown)

Courtesy of BMW OF NORTH AMERICA, INC.

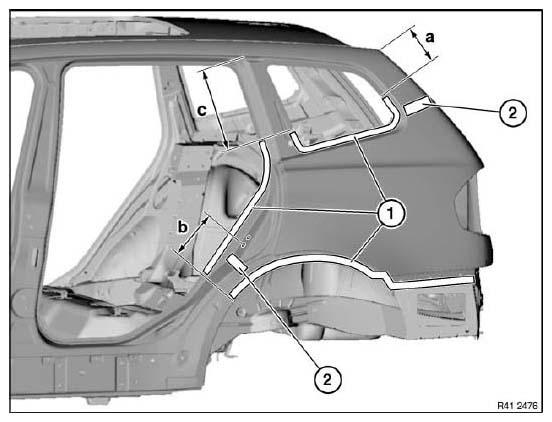

Fig 2: Cavity Acoustic Baffles And Weld Joints In Areas Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer metal sheet only.

Measurement a = approx. 120 mm from roof frame

Measurement b = approx. 190 mm from middle of lower lock striker screw point.

Measurement c = approx. 290 mm

Open weld joints in areas (1).

Installation information:

Apply window glass adhesive to cavity acoustic baffles (2).
Weld in reinforcement plate at severance cut, see 41 00... Welding in reinforcement plate (steel plate) .

Open weld joints in areas (1).

Fig 3: Weld Joints In Area

Courtesy of BMW OF NORTH AMERICA, INC.
