41 35 000 Removing And Installing/Replacing Side Panel, Front Left Or Right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not damage adjoining body parts.

Installation information:

E83 gap dimensions serve as basis for adjustment tasks.

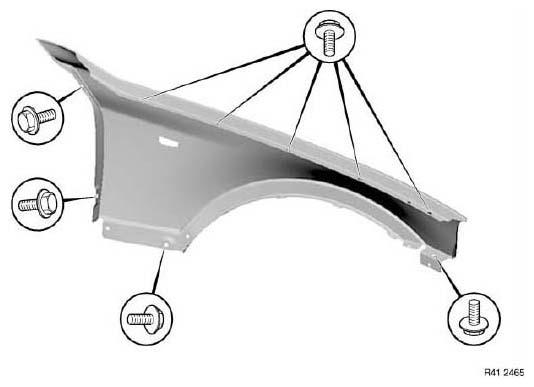

Fig 1: Front Side Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Interior view of front side panel

Open screws.
