41 21 510 Replacing Front Left Door Pillar (Front Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, General, see 41 0 Contents of Body, General .

Spot-weld bonding is used on the E83. Observe specific procedure, see 41 00... Opening adhesive bonds .

Place vehicle on straightening bench.

Following new body parts are required:

(1) A-pillar, outer
(2) Connecting plate, side frame

Fig 1: A-Pillar, Outer And Connecting Plate, Side Frame

G04788230

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Fig 2: Weld Joints In Area

G04788231

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Fig 3: Weld Joints In Area

G04788232

Courtesy of BMW OF NORTH AMERICA, INC.

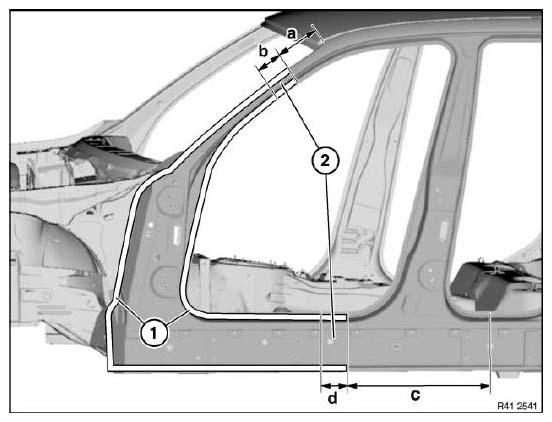

Fig 4: Metal Section And Weld Joints In Areas Dimension

G04788233

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

Measurement a = approx. 150 mm from roof edge.

Measurement b = approx. 80 mm below severance cut a.

Measurement c = approx. 560 mm before hole dia. 20 mm.

Measurement d = approx. 80 mm before severance cut c.

Open weld joints in areas (1).

Installation:

Metal sections (2) are needed again to seal cowl.

IMPORTANT: For following severance cut, do not damage sunroof water drain hose.

Mark severance cut (1) in accordance with measurement and cut.

Measurement a = approx. 190 mm from roof edge.

Fig 5: Mark Severance Cut Dimension

G04788234

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with measurement and cut.

Measurement a = approx. 600 mm before hole dia. 20 mm.

Fig 6: Mark Severance Cut Dimension (Before Hole Dia)

G04788235

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Fig 7: Weld Joints In Area

G04788236

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Fig 8: Weld Joints In Area

G04788237

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cuts above and cut.

Installation:

Weld in reinforcing panels at all severance cuts., see 41 00... Welding in reinforcement plate (steel plate) .

Apply window glass adhesive to cavity acoustic baffles (1), see 41 00... Installing a cavity bulkhead (expanded)

Adjust new part to fit with straightening attachment or universal mount.

Fig 9: Cavity Acoustic Baffles

G04788238

Courtesy of BMW OF NORTH AMERICA, INC.
