36 11 105 Removing and installing RDC (Tire Pressure Control) control unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove right luggage compartment trim panel. See 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

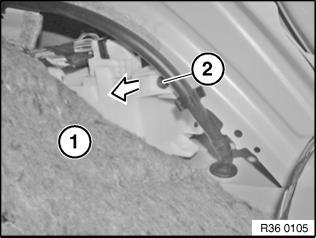

Press sound-insulating material (1) to one side slightly. Release screw (2) and carefully swing out control unit holder a little.

Fig 1: Press Sound-Insulating Material (1) To One Side Slightly

Courtesy of BMW OF NORTH AMERICA, INC.

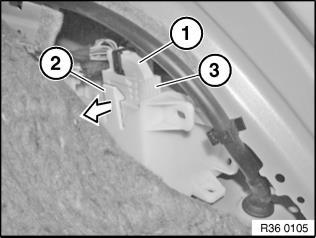

Disconnect plug connection (1). Press lug (2) in direction of arrow and pull out control unit (3) towards top.

Fig 2: Disconnect Plug Connection (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING
