34 35 ... Replacing a brake pad sensor (rear)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: If a brake pad sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the ground sliding contact.

Necessary preliminary tasks:

Remove wheel, see 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

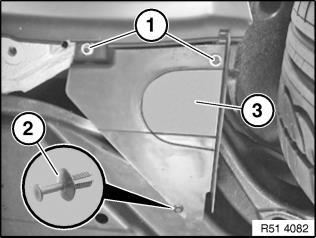

Release screws (1). Release expander rivet (2) and remove cover (3).

Fig 1: Release Expander Rivet (2) And Remove Cover (3)

Courtesy of BMW OF NORTH AMERICA, INC.

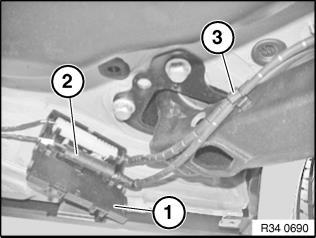

Open cover (1). Disconnect plug connection (2). Disengage cable from holders (3). Installation: Ensure proper locking of the plug connector and proper seating of the cable in the brackets.

Fig 2: Disconnect Plug Connection (2) And Disengage Cable From Holders (3)

Courtesy of BMW OF NORTH AMERICA, INC.

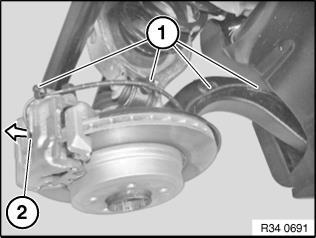

Disengage cable from holders (1). Pull off brake pad wear sensor (2) in direction of arrow from brake caliper. Installation: Make sure cable and brake pad wear sensor are correctly seated in brake caliper.

Fig 3: Disengage Cable From Holders (1)

Courtesy of BMW OF NORTH AMERICA, INC.
