33 33 111 Replacing all rubber mounts for rear axle support

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 0 001
33 0 002
33 0 011
33 0 012
33 0 051
33 0 052
33 0 140

IMPORTANT: Before removing rear axle support: In order to avoid damage to the vehicle hoists, perform weight compensation on vehicle. Load luggage compartment with sand bags.

Necessary preliminary tasks:

Remove rear axle support .

Picture shows F01. Press-out and press-in directions pictured.

Front rubber mount (1) is pulled out and in a downward direction.
Rear rubber mount (2) is pulled out and in an upward direction.

Fig 1: Removing Front & Rear Rubber Mounts

G00495568

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removal and installation are described on the front rubber mount.

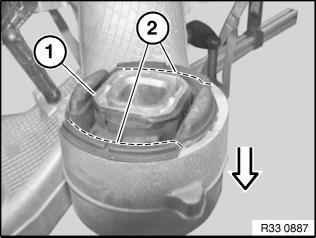

NOTE: Edges (2) break off when rubber mount (1) is pulled out in the direction of arrow.

Fig 2: Edges (2) Break Off When Rubber Mount (1) Is Pulled Out In Direction Of Arrow

G00495594

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble special tool 33 4 140 in conjunction with 33 0 011 and 33 0 012.

Fig 3: Assemble Special Tool 33 4 140

G00495595

Courtesy of BMW OF NORTH AMERICA, INC.

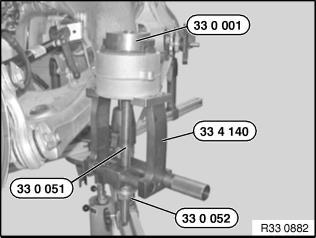

Withdraw rubber mount using special tools 33 4 140, 33 0 051, 33 0 052 and 33 0 001 from rear axle support bush.

Fig 4: Withdraw Rubber Mount From Rear Axle Support Bush

G00495596

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure special tool 33 0 001 is correctly positioned in relation to rubber mount. Make sure special tool 33 4 140 is correctly supported on rear axle support bush.

Applicable to front rubber mount: (View of rear axle support from above)

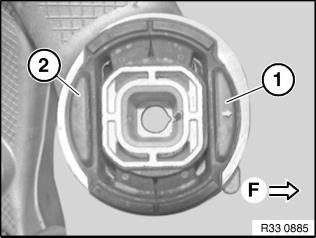

IMPORTANT: Arrow (1) must point on rubber mount (2) in direction of travel.

Fig 5: Arrow (1) Must Point On Rubber Mount (2) In Direction Of Travel

G00495597

Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to rear rubber mount: (View of rear axle support from below)

IMPORTANT: Notch (1) and arrow (2) on rubber mount (3) must point in direction of travel.

Fig 6: Notch (1) And Arrow (2) On Rubber Mount (3) Must Point In Direction Of Travel

G00495598

Courtesy of BMW OF NORTH AMERICA, INC.

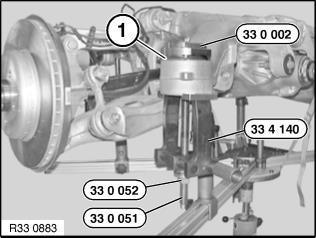

Draw in rubber mount (1) with special tools 33 0 002, 33 4 140, 33 0 052 and 33 0 051 as far as it will go into rear axle support bush.

Fig 7: Draw In Rubber Mount As Far As It Will Go Into Rear Axle Support Bush

G00495599

Courtesy of BMW OF NORTH AMERICA, INC.

After installation: For F01/F02/F07 only: Activate and fill air suspension system
