33 00 ... Rear axle: wheel/chassis alignment check must be carried out after the following work

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

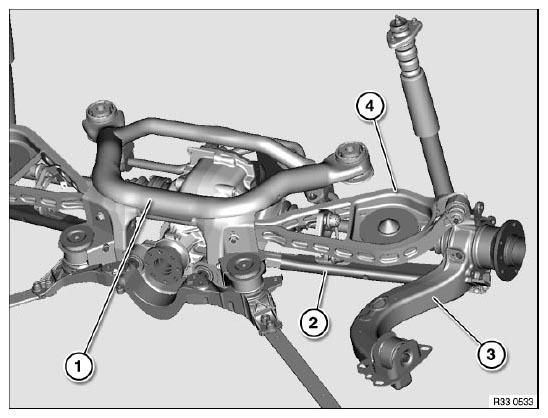

Fig 1: Rear Axle Carrier, Lower Control Arm And Trailing Arm

Courtesy of BMW OF NORTH AMERICA, INC.

A wheel/chassis alignment check, see 32 00 ... CHASSIS/WHEEL ALIGNMENT CHECK PROCEDURE must be carried out after the following work:

Release of following screw/bolt connections:
- Rear axle carrier to body
- Bearing block to trailing arm / body
- Upper control arm to rear axle carrier / trailing arm
- Lower control arm to rear axle carrier / trailing arm
Replacement of following parts:
1. Rear axle carrier / rubber mount
2. Lower control arm / rubber mount
3. Trailing arm / rubber mount / bearing block / ball joint
4. Upper control arm / rubber mount / ball joint
