24 35 610 Removing and installing/replacing transmission position switch (GA6L45R)
WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Use only approved transmission oil, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Failure to comply with this instruction will result in serious damage to the transmission.
Necessary preliminary tasks: Remove transmission oil filter .

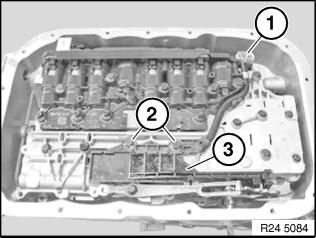

Unlock and disconnect plug (1). Release screws (2). Remove transmission position switch (3). Tightening torque, see 24 30 1AZ in 24 30 HYDRAULIC / ELECTRIC CONTROL PARTS AND CONTROLLING ELEMENTS .
