24 33 530 Replacing gear selector valve (GA6L45R)

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) . Use only approved transmission oil, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) . Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove mechatronics .

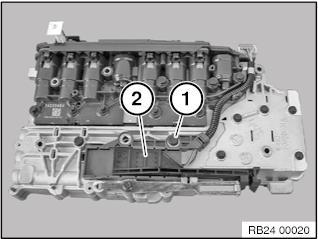

Release screw (1). Place gear position switch (2) to one side. Tightening torque 24 30 1AZ, see 24 30 HYDRAULIC / ELECTRIC CONTROL PARTS AND CONTROLLING ELEMENTS .

Fig 1: Place Gear Position Switch (2) To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly press bracket (1) upwards. Using suitable tool (2) push gear selector valve (3) out of the mechatronics system.

Fig 2: Slightly Press Bracket (1) Upward

Courtesy of BMW OF NORTH AMERICA, INC.
