24 14 005 Replacing sealing cap for selector shaft (GA6L45R)

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) . Use only approved transmission oil, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) . Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove rear underbody protection. See 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
Remove front propeller shaft from transfer case and tie to one side. Tasks are described in REMOVING AND INSTALLING PROPELLER SHAFT (CARDAN UNIVERSAL JOINT) COMPLETELY

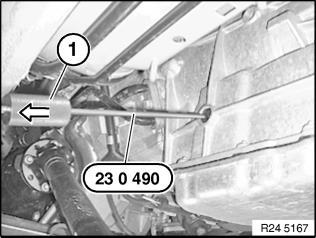

Screw special tool 23 0 490 into sealing cap. Drive out sealing cap with impact weight (1).

Fig 1: Drive Out Sealing Cap With Impact Weight (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Place new sealing cap (1) on drift (2).

NOTE: Drift (2) for driving in sealing cap is contained in repair kit.

Fig 2: Place New Sealing Cap (1) On Drift (2)

Courtesy of BMW OF NORTH AMERICA, INC.

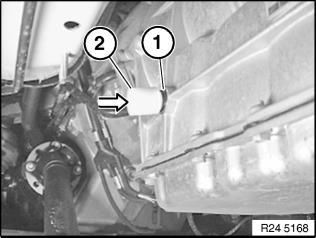

Drive in new sealing cap (1) with drift (2) as far as it will go.

Fig 3: Drive In New Sealing Cap (1) With Drift (2)

Courtesy of BMW OF NORTH AMERICA, INC.
