24 11 007 Replacing sealing plug (GA6L45R)

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 4 340 (Lever)

IMPORTANT: After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) . Use only approved transmission oil, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) . Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks: Remove rear underbody protection.

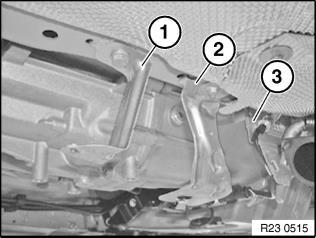

Remove holder (2).

Fig 1: Remove Holder (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock sealing plug with special tool 24 4 340 in direction of arrow and remove.

Fig 2: Unlock Sealing Plug With Special Tool 24 4 340

Courtesy of BMW OF NORTH AMERICA, INC.
