23 14 ... Replacing reversing light switch

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear underbody protection.

GS6-17DG/BG and GS6-37DG/BG transmissions only. Disconnect plug connection (1) on reverse gear switch.

Remove reverse gear switch. Tightening torque 23 14 1AZ.

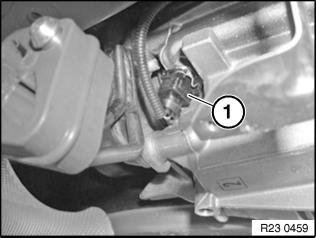

Fig 1: Disconnect Plug Connection (1) On Reverse Gear Switch (GS6-17DG/BG and GS6-37DG/BG Transmission)

Courtesy of BMW OF NORTH AMERICA, INC.

GS6-53DG/BG transmission only Disconnect plug connection (1) on reverse gear switch. Remove reverse gear switch. Tightening torque 23 14 1AZ.

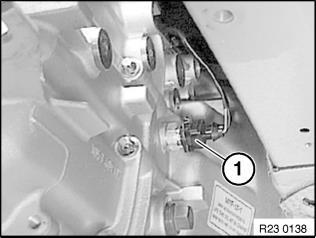

Fig 2: Disconnect Plug Connection (1) On Reverse Gear Switch (GS6-53DG/BG Transmission)

Courtesy of BMW OF NORTH AMERICA, INC.
