23 00 036 Installing replacement transmission (GS6-37BZ) AWD

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, check transmission fluid level. See DRAINING/TOPPING UP GEAR OIL IN MANUAL TRANSMISSION . Use only the approved transmission fluid. Failure to comply with this instruction will result in serious damage to the transmission.

NOTE: Recycling: Catch and dispose of escaping transmission fluid. Observe country-specific waste-disposal regulations.

Necessary preliminary tasks:

Drain gear oil at oil drain plug. Tightening torque, see 23 00 4AZ in 00 COMPLETE TRANSMISSION .
Remove transfer case.
Remove transmission.

Convert following parts from previous transmission to new transmission:

Release bearing and release lever. See 51 CLUTCH RELEASE CONTROL WITH LEVER .
Knurled pin for clutch slave cylinder.
Reversing light switch tightening torque, see 23 41 5AZ in 23 41 EXTERNAL GEARSHIFT COMPONENTS .

Convert shift rod joint. Push back retaining ring (1) and drive out dowel pin (2).

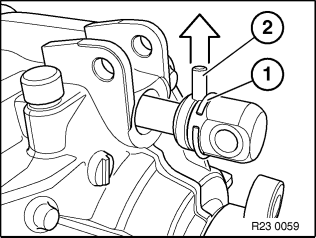

Fig 1: Push Back Retaining Ring (1) And Drive Out Dowel Pin (2)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check damping disk (6) for damage and replace if necessary.

Fig 2: Checking Damping Disk (6) For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle. Check oil level. Installation: Observe greasing specification.
