61 67 045 Removing and installing/replacing spray nozzles of headlight washer system on left or right (from 09/2006)

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

13 3 010 HOSE CLIP

Necessary preliminary tasks:

Remove front bumper trim, see 51 11 156 REMOVING AND INSTALLING/REPLACING FRONT BUMPER TRIM (M TECHNIC AERODYNAMIC KIT) .
Remove cover for headlight washer system, see 1 11 ... REMOVING AND INSTALLING/REPLACING FRONT COVER FOR HEADLIGHT WASHER SYSTEM ON LEFT OR RIGHT (M TECHNIC AERODYNAMIC KIT)

To prevent excess escape of washer fluid, seal off end of high - pressure line with special tool 13 3 010 .

Catch any escaping washer fluid if necessary.

Fig 1: Identifying Special Tool (13 3 010)

Courtesy of BMW OF NORTH AMERICA, INC.

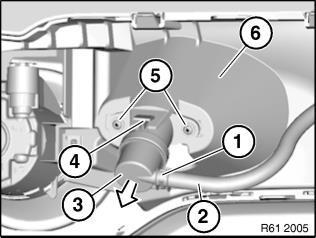

Unlock plug connection (1) and detach high-pressure line (2) from spray nozzle for headlight washer system (3). Release screws (5). Remove spray nozzle for headlight washer system (3) in direction of arrow from bumper trim (6).

Installation: Make sure guide (4) is correctly seated on bumper trim (6). Keep plug connection (1) of high-pressure line (2) and high-pressure nozzle (3) clean and free from grease.

Fig 2: Make Sure Guide (4) Is Correctly Seated On Bumper Trim (6)

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure high-pressure line (2) is correctly engaged on spray nozzle (3). If necessary, top up washer fluid.
