61 62 100 Adjusting jet nozzle for rear window washer unit

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The spray must meet the contact point (1).

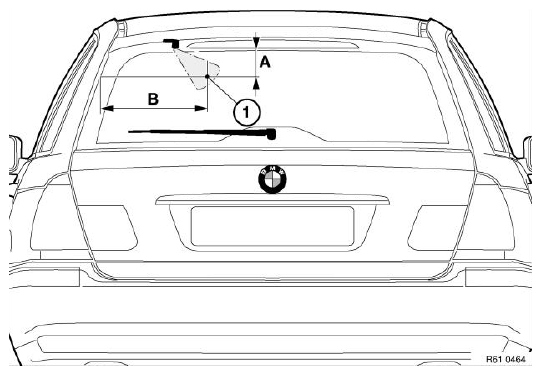

Fig 1: Identifying Jet Nozzle For Rear Window Washer Unit Contact Point

Courtesy of BMW OF NORTH AMERICA, INC.

Adjustment measurements:

MEASUREMENTS CHART

	Measurement A [mm]	Measurement B [mm]
E46 Touring	100	320
E53	100	450
E83	180	460

IMPORTANT: Do not insert any pointed objects in nozzle (risk of damage).

Mark contact point with crepe tape. Adjust jet nozzle with offset screwdriver (3.5 mm) in slot.

Fig 2: Adjusting Jet Nozzle With Offset Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
