11 31 025 Removing and installing/replacing inlet camshaft (M57T2)

Necessary preliminary tasks:

REMOVING CYLINDER HEAD COVER

Crank engine at crankshaft with special tool 11 6 480.

The cams on the inlet camshaft at the 1st cylinder point downwards.

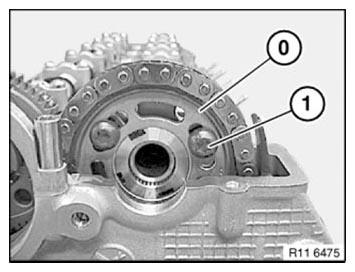

Release screw (1).

NOTE: Bolt (1) must be removed beforehand as it is no longer accessible in TDC position.

Sprocket wheel classification (0) value from 0 to 9

Tightening torque, see 11 31 1AZ in 11 31 CAMSHAFT .

Fig 1: Identifying Inlet Camshaft Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

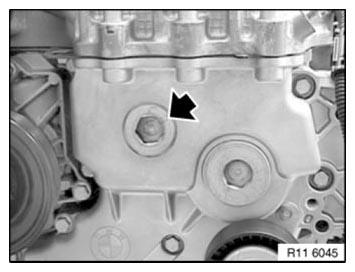

Undo plug in timing case cover at bottom.

Fig 2: Locating Plug On Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: No piston is permitted to be in the TDC position risk of damage .
Crank engine back at crankshaft through 45°.

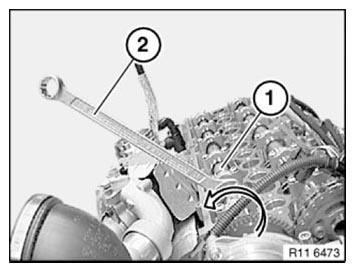

Turn exhaust camshaft at hexagon head in direction of arrow.

The hydraulic chain tensioner can be secured in place in this position with special tool 11 3 340.

NOTE: The hydraulic chain tension is forced back by rotating the exhaust and inlet camshafts.

Fig 3: Turning Exhaust Camshaft On Hexagon Head

Courtesy of BMW OF NORTH AMERICA, INC.

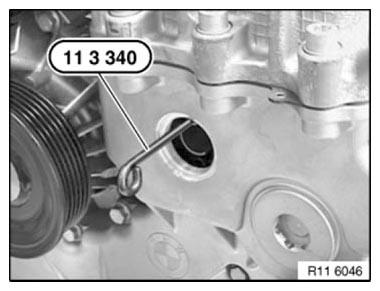

Lock hydraulic chain tensioner with special tool 11 3 340.

NOTE: If the sprocket wheel is removed without the hydraulic chain tensioner being locked, the chain tensioner piston will slip out and can then only be pressed back again with a considerable amount of effort.

Fig 4: Locking Hydraulic Chain Tensioner Using Special Tool (11 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap in direction of arrow.

Installation

Reinstall protective cap with some grease.

Fig 5: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at crankshaft with special tool 11 6 480.

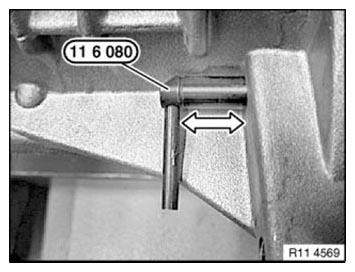

Secure crankshaft at flywheel with special tool 11 6 080.

Fig 6: Securing Crankshaft On Flywheel Using Special Tool (11 6 080)

Courtesy of BMW OF NORTH AMERICA, INC.

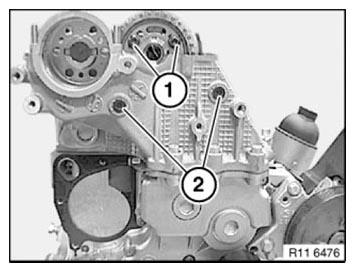

Release sprocket wheel bolts (1).

Tightening torque, see 11 31 1AZ in 11 31 CAMSHAFT .

Release bearing pins (2) of guide rails.

Fig 7: Identifying Sprocket Wheel Bolts And Bearing Pins Of Guide Rails

Courtesy of BMW OF NORTH AMERICA, INC.

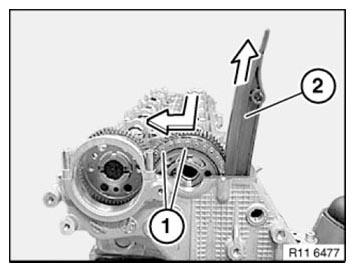

Release sprocket wheel with chain (1) from inlet camshaft in direction of arrow.

Release guide rail (2) from mounting and pull out in direction of arrow.

Fig 8: Releasing Sprocket Wheel With Chain From Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

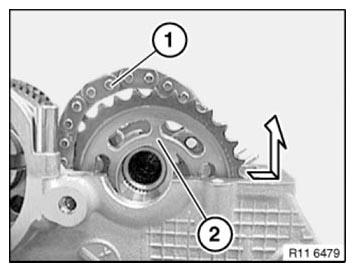

Remove sprocket wheel (2) in direction of arrow to right from timing chain (3) and remove towards top.

Fig 9: Removing Sprocket Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

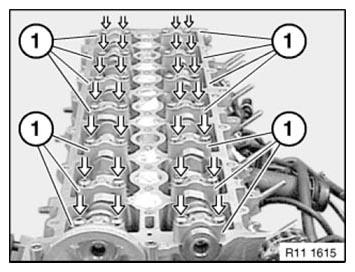

Release bolts (1) of inlet camshaft bearing cap in 1/2 turn increments evenly from outside to inside.

NOTE: Illustration shows M57TU.

Fig 10: Releasing Bolts Of Inlet Camshaft Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

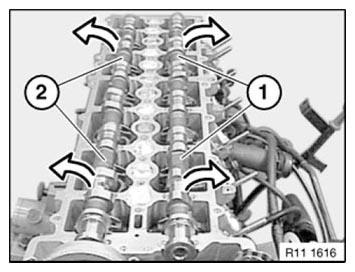

Remove bearing caps of inlet camshaft and lift out inlet camshaft (1).

All bearing caps are marked.

E = inlet camshaft.

A = exhaust camshaft.

Fig 11: Lifting Out Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Worn rockers may only be reused on the same grooves of the camshaft.

Fig 12: Identifying Rockers

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: These screws must "not" be removed.

Fig 13: Caution For Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E Inlet camshaft
A Exhaust camshaft

Fig 14: Identifying Inlet And Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert inlet camshaft.

Position (1) of inlet camshaft gear flush with cylinder head.

Position (2) of exhaust camshaft gear flush with cylinder head.

If necessary, resecure camshafts.

Fig 15: Identifying Positions Of Inlet And Exhaust Camshaft Gears

Courtesy of BMW OF NORTH AMERICA, INC.

Marking (1) on inlet camshaft must be between markings (2) on exhaust camshaft.

See illustration.

Fig 16: Identifying Marking On Inlet And Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

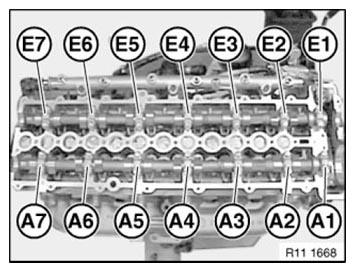

The inlet camshaft bearing covers are marked E 1... E 7 from the exhaust side.

Fit bearing covers.

Fig 17: Identifying Markings Of Inlet Camshaft Bearing Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all screws (1) and initially tighten so that they are free of play.

Tighten down inlet camshaft bearing caps in 1/2 turn increments evenly from inside to outside.

Fig 18: Inserting Inlet Camshaft Bearing Caps Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Mount sprocket wheel and release chain tensioner.

Cams of both camshafts must point to top right.

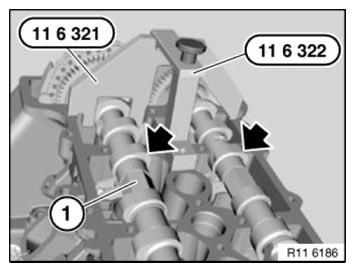

Place special tool 11 6 321 on inlet camshaft.

Secure special tool 11 6 321 with special tool 11 6 322.

Installation:

The exhaust camshaft only has to be checked, adjustment is not possible.

Fig 19: Placing Special Tool (11 6 332) On Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 6 254 to cylinder head with bolts (1).

NOTE: See illustration.

Fig 20: Securing Special Tool (11 6 254) To Cylinder Head With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Check inlet camshaft axial clearance.

Set up special tool 11 6 252 with dial gauge.

Refer to TECHNICAL DATA

Procedure for exhaust camshaft is identical.

Fig 21: Checking Inlet Camshaft Axial Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust VALVE TIMING .

Assemble engine.
