11 31 025 Removing and installing/replacing exhaust camshaft (M57T2)

Necessary preliminary tasks:

Remove protective cap in direction of arrow.

Installation:

Reinstall protective cap with some grease.

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at central bolt.

Secure crankshaft at flywheel with special tool 11 6 080.

Fig 2: Securing Crankshaft On Flywheel Using Special Tool (11 6 080)

Courtesy of BMW OF NORTH AMERICA, INC.

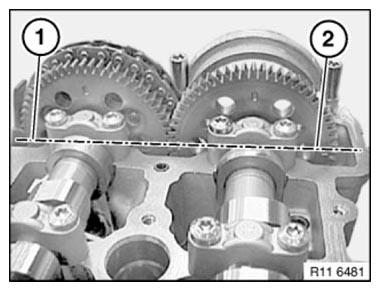

Position (1) of inlet camshaft gear flush with cylinder head.

Position (2) of exhaust camshaft gear flush with cylinder head.

Fig 3: Identifying Positions Of Inlet And Exhaust Camshaft Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Evenly release bolts of camshaft bearing caps A1 to A7 in 1/2 turn steps from outside to inside.

Remove exhaust camshaft in direction of arrow.

Fig 4: Removing Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Worn rockers may only be reused on the same grooves of the camshaft.

Fig 5: Identifying Oil Camshaft Bearings And Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: These screws must "not" be removed.

Fig 6: Caution For Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E Inlet camshaft

A Exhaust camshaft

Fig 7: Identifying Inlet And Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Insert exhaust camshaft.

Position (1) of inlet camshaft gear flush with cylinder head.

Position (2) of exhaust camshaft gear flush with cylinder head.

If necessary, resecure camshafts.

Fig 8: Identifying Positions Of Inlet And Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Marking (1) on inlet camshaft must be between markings (2) on exhaust camshaft.

See illustration.

Fig 9: Identifying Markings On Inlet And Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

The exhaust camshaft bearing covers are marked A 1... A 7 from the exhaust side.

Oil all bearing points.

Fit bearing covers.

Insert all bolts and initially tighten without play.

Tighten down exhaust camshaft bearing caps in 1/2 turn increments evenly from inside to outside.

Fig 10: Tightening Exhaust Camshaft Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Cams of both camshafts must point to top right.

Place special tool 11 6 321 on exhaust camshaft.

Secure special tool 11 6 321 with special tool 11 6 322.

Installation

The exhaust camshaft only has to be checked, adjustment is not possible.

Fig 11: Placing Special Tool (11 6 321) On Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 6 254 to cylinder head with bolts (1).

NOTE: See illustration.

Fig 12: Securing Special Tool (11 6 254) To Cylinder Head With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Check exhaust camshaft axial clearance.

Set up special tool 11 6 252 with dial gauge.

Refer to TECHNICAL DATA

NOTE: Illustration shows inlet camshaft.

Procedure for exhaust camshaft is identical.

Fig 13: Checking Exhaust Camshaft Axial Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, adjust VALVE TIMING .

Assemble engine.
