Replace sealing ring

When installing, apply a thin coating of antiseize agent to sealing ring.

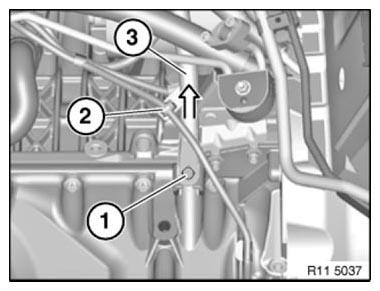

Fig 1: Removing Guide Tube
G07039542Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
