11 71 100 Removing and installing or replacing the exhaust-gas recirculation cooler (M57T2-SCR)

IMPORTANT: When working on the oil, coolant or fuel circuit, you must protect the alternator against dirt contamination.

Cover alternator and belt drive with suitable apparatus.

Necessary preliminary work:

Remove acoustic cover
Remove fan cowl. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (M57T2) .
Drain coolant. See 17 00 005 DRAINING AND ADDING COOLANT (M57T2)
Remove intake silencer housing. See 13 71 000 REMOVING AND INSTALLING/REPLACING THE INTAKE SILENCER HOUSING (M57T2 WITH AND WITHOUT SCR) .

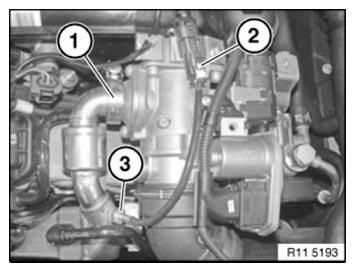

Release clamp (1) from exhaust-gas recirculation cooler.

Installation note:

Tightening torque, see 11 71 5AZ in 11 71 EXHAUST-GAS RECIRCULATION .

Disconnect connector (2).

Turn plug socket counterclockwise and remove in upward direction from holder.

Installation note:

If replacing, modify exhaust-gas temperature sensor (3).

Tightening torque, see 11 71 7AZ in 11 71 EXHAUST-GAS RECIRCULATION .

Fig 1: Identifying Exhaust-Gas Temperature Sensor, Clamp And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Follow notes for repair work on the cooling system.

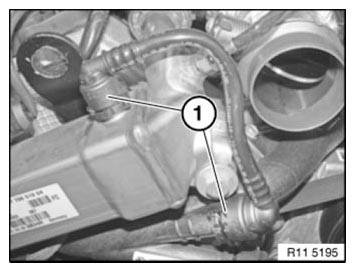

Unlock and detach coolant hose (1).

Fig 2: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

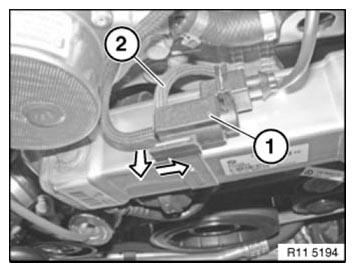

Gently pull clip from electric changeover valve (1) towards front and slide away to right side.

Fig 3: Pulling Clip From Electric Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on the exhaust-gas recirculation cooler/manifold.

Installation note:

Tightening torque, see 11 71 4AZ in 11 71 EXHAUST-GAS RECIRCULATION

Fig 4: Identifying Exhaust-Gas Recirculation Cooler/Manifold Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw (1)

Installation note:

Tightening torque 11 71 6AZ in 11 71 EXHAUST-GAS RECIRCULATION .

Fig 5: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

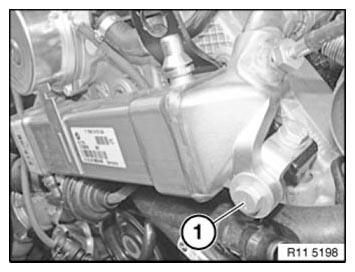

Release bolt (1) and remove exhaust-gas recirculation cooler.

Installation note:

Replace screw.

Tightening torque 11 71 6AZ in 11 71 EXHAUST-GAS RECIRCULATION .

Fig 6: Identifying Exhaust-Gas Recirculation Cooler Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

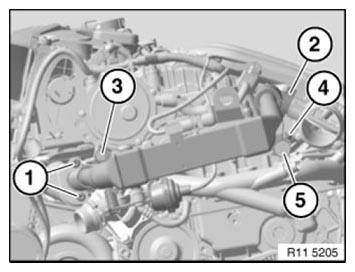

Installation note:

Observe tightening sequence.

Join bolts (3, 4 and 5).

Tightening torque 11 71 6AZ in 11 71 EXHAUST-GAS RECIRCULATION .

Release bolts (3, 4 and 5) back by 90°.
Secure screws (1).

Tightening torque, see 11 71 4AZ in 11 71 EXHAUST-GAS RECIRCULATION

Secure profile clamp (2).

Tightening torque 11 71 5AZ in 11 71 EXHAUST-GAS RECIRCULATION .

Tighten screw (3).
Secure bolt (4) on holder.
Secure microencapsulated bolt (5).

Fig 7: Identifying Microencapsulated Bolt, Profile Clamp And Holder Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Top up coolant.
