11 66 000 Removing and installing or replacing vacuum pump (M47TU/M47T2/M57TU/M57T2)

WARNING: Scalding hazard!
Only perform these tasks on an engine that has cooled down.

Necessary preliminary tasks:

Release screw.

Detach coupling element of vacuum hose.

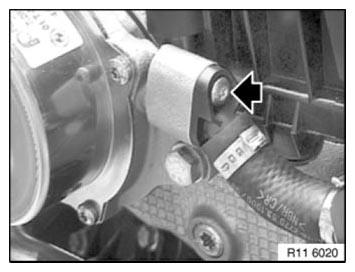

Fig 1: Locating Coupling Element Of Vacuum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-ring during installation.

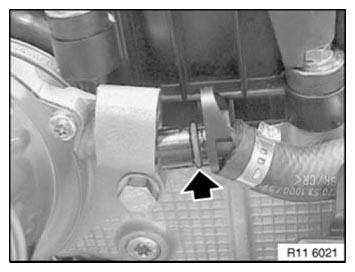

Fig 2: Locating O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Remove vacuum pump.

NOTE: Screw threads are coated with sealing compound.

Replace screws or apply

Drei Bond 1209 sealing compound (refer to BMW Parts Service).

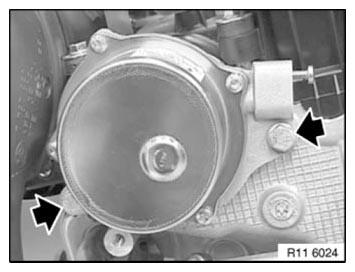

Fig 3: Locating Vacuum Pump Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-ring (1) and apply a thin coat of anti-friction agent.

Align driver (2) of vacuum pump to opening on camshaft gear.

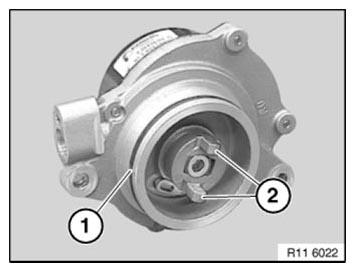

Fig 4: Identifying O-Ring And Vacuum Pump Driver

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The screw on the camshaft gear has a nozzle for lubricating the vacuum pump.

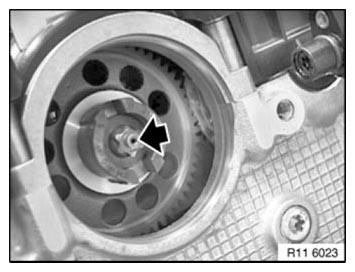

Fig 5: Locating Camshaft Gear Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check vacuum system for leaks.
