11 61 350 Removing and installing/replacing left pressure pipe (charge air hose (M57T2-SCR)

Necessary preliminary tasks:

Check function of DDE
Remove engine underbody protection
Remove acoustic cover

IMPORTANT: Pressure pipes cannot be fitted without lubricant.
Damaged shaped sealing rings will result in a pressure loss, risk of damage to turbocharger.

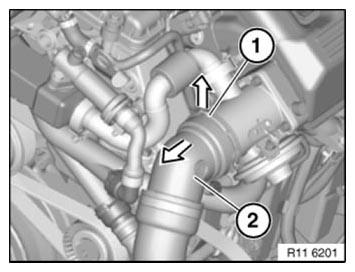

Unlock locking clip (1) in direction of arrow.

Release pressure pipe (2) in direction of arrow.

Fig 1: Releasing Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

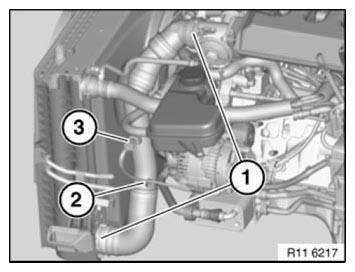

Release pressure pipe at points (1).

Detach cable from retainer (2).

Disconnect plug connection (3).

Fig 2: Identifying Retainer And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

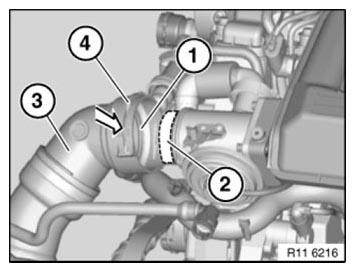

Visually inspect shaped sealing ring (1) for correct seating and damage.

Coat all mounting fittings with anti-friction agent (2). Refer to TECHNICAL DATA

Lock locking clip (4).

Attach pressure pipe (3) in direction of arrow.

Installation note:

VDA couplings are correctly fitted when they snap into place with an audible click.

Fig 3: Attaching Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of Digital Diesel Electronics.

Check pressure pipes for leaks.
