11 61 050 Removing and installing intake plenum (M57T2-SCR)

Necessary preliminary work:

(E9x only)

Release screws (1, 2).

Remove heater end panel (3).

Installation note:

Make sure heater end panel is correctly seated.

Fig 1: Identifying Heater End Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

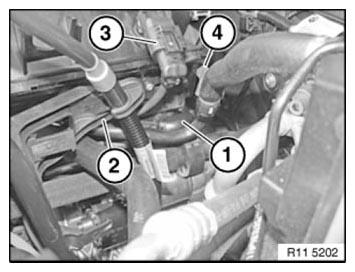

Disconnect plug connection (1) on swirl-flap actuator.

Release screw (2) on dipstick.

Disconnect plug connection for pressure sensor (3).

Unclip vacuum line (4) from holder.

Fig 2: Identifying Swirl-Flap Actuator Plug Connection, Pressure Sensor, Vacuum Lines And Dipstick Screw

Courtesy of BMW OF NORTH AMERICA, INC.

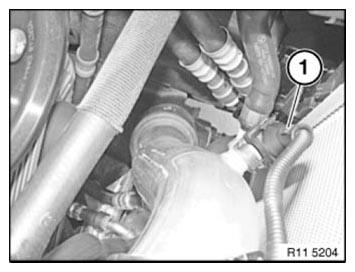

Disconnect plug connection (1) on right pressure pipe.

Fig 3: Identifying Plug Connection On Right Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

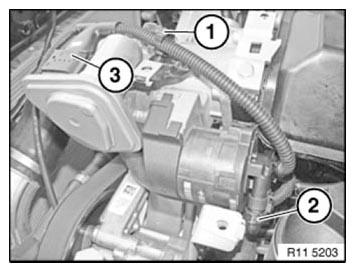

Open cable clips (1).

Disconnect plug connection (2) from exhaust-gas recirculation valve.

Disconnect plug connection (3) from electromotive throttle actuator.

Fig 4: Identifying Exhaust-Gas Recirculation Valve And Electromotive Throttle Actuator Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

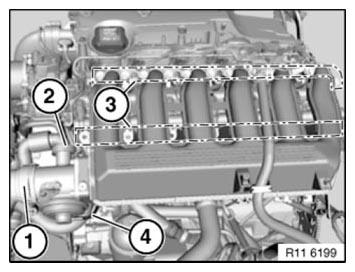

Unlock and detach charge air hose (1).

Release profile clamp (2) for exhaust gas recirculation line. Tightening torque, see 11 71 1AZ in EXHAUST-GAS RECIRCULATION .

Release screw connection along lines (3).

Tightening torque, see 11 61 1AZ in 11 61 INTAKE MANIFOLD .

NOTE: Picture shows M57T2 Europe.

Fig 5: Identifying Charge Air Hose, Profile Clamp And Screw Connection Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all gaskets.

Assemble engine.

Check function of DDE.
