11 34 560 Replacing all valve stem seals (M57T2)

Necessary preliminary tasks:

Press special tool 11 6 370 onto valve stem seal and turn.

Remove special tool 11 6 370 together with valve stem seal.

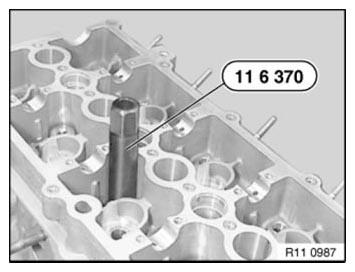

Fig 1: Identifying Special Tool (11 6 370)
G06853065Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem and fit special tool 11 1 960.

Coat new valve stem seal (1) with oil and install.

Remove special tool 11 1 960.

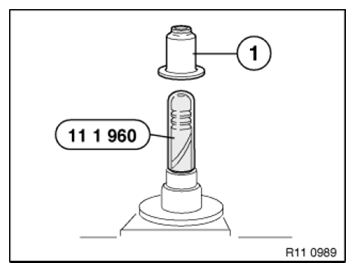

Fig 2: Identifying Special Tool (11 1 960) On Valve Stem
G06853066Courtesy of BMW OF NORTH AMERICA, INC.

Press on valve stem seal with special tool 11 6 380 as far as it will go.

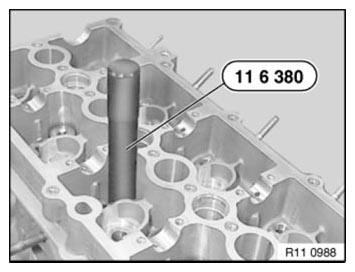

Fig 3: Pressing Valve Stem Seal Using Special Tool (11 6 380)
G06853067Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
