11 28 010 Removing and installing or replacing drive belt for alternator (M57T2-SCR)
Necessary preliminary work:
- Remove fan cowl. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (M57T2) .
- Remove AIR CONDITIONING COMPRESSOR DRIVE BELT
Check drive belt for coolant and oil residues, replace if necessary.
IMPORTANT:
The drive belt must be replaced if it is contaminated with hydraulic fluid.
NOTE:
If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of travel.
IMPORTANT:
Belt tensioner is under spring pressure.

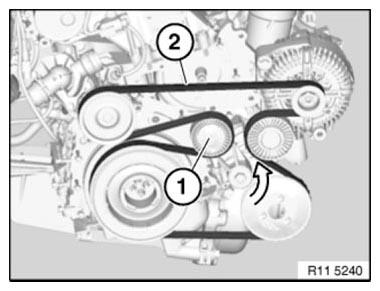

Relieve tension on belt tensioner (1) in direction of arrow.
Remove drive belt (2).
Assemble engine.
