11 23 010 Removing and installing/renewing vibration damper (M57T2-SCR)

Necessary preliminary work:

• Remove fan cowl. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (M57T2) .
• Remove alternator DRIVE BELT

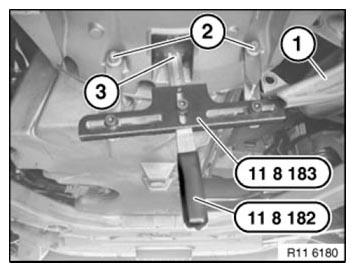

Move special tool 11 8 183 to gearbox (HP 26).

Detach exhaust bracket (1) from gearbox.

Fit special tool 11 8 183 and 11 8 182 at gearbox bolts (2).

Adjust special tool 11 8 182 at flywheel spline (3).

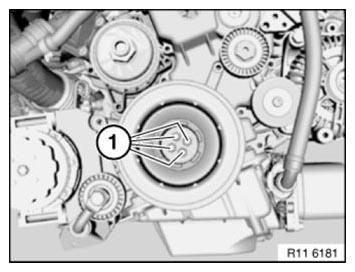

Release screws (1).

Remove vibration damper (2).

Tightening torque, see 11 23 2AZ in 11 23 VIBRATION DAMPER .

Installation note:

Replace screws.

Tighten screws crosswise.
