11 14 110 Removing and installing, sealing/replacing front timing case cover (M57T2): Installation

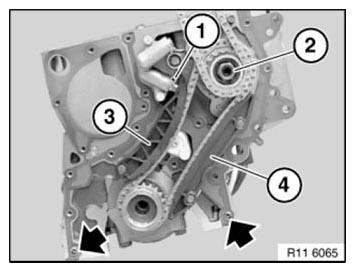

Check adapter sleeves (see arrows) for damage.

Fig 1: Locating Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Replace seal.

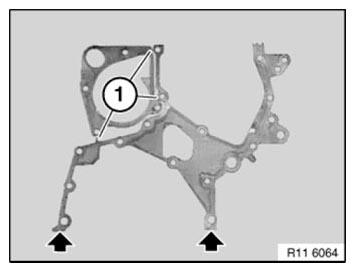

When repair work is carried out on the timing case cover, the timing case cover gasket must be cut through at the marked points (1).

Apply a thin coat of Drei Bond 1209 sealing compound (sourcing reference: BMW Parts Service) to ends (arrows) of timing case cover on both sides.

If necessary, remove WATER PUMP  .

Fig 1: Identifying Timing Case Cover Gasket Cutting Points

Courtesy of BMW OF NORTH AMERICA, INC.

Fit timing-chain cover.

Insert all screws and pretighten to 5 Nm.

Installation:

Tightening torque, see 11 14 1AZ in 11 14 CASE COVERS .

Fig 2: Locating Timing-Chain Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
