Mounting engine on assembly stand (M57T2)

• Remove engine

Secure special tool 11 6 090 to crankcase.

Tighten screws uniformly.

Secure engine with special tool 11 6 090 to assembly stand 00 2 300/ 00 1 450.

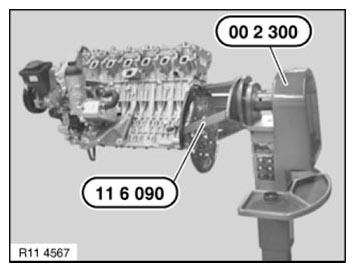

Fig 1: Securing Engine Using Special Tool (11 6 090) To Assembly Stand (00 2 300/00 1 450)

Courtesy of BMW OF NORTH AMERICA, INC.
