11 00 050 Removing and installing engine (SCR) M57T2: Recycling

Catch and dispose of escaping fuel with auxiliary materials.

Observe country-specific waste disposal regulations.

Unlock and detach coolant hose (1) from radiator at bottom.

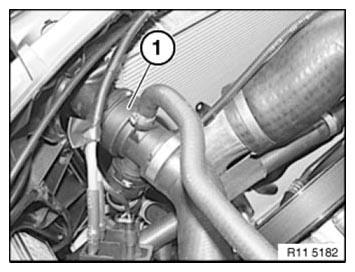

Fig 1: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach coolant hose (1) from radiator at top.

(Picture shows E90).

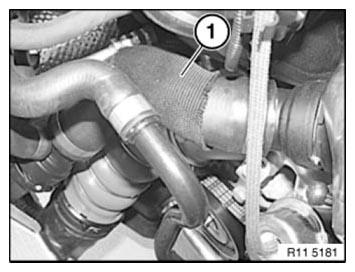

Fig 2: Identifying Coolant Hose (E90)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock vacuum line (1) on brake servo and detach.

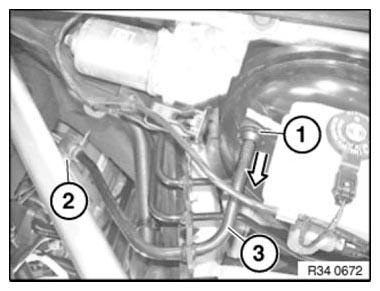

Fig 3: Disconnecting Vacuum Line From Brake Servo

Courtesy of BMW OF NORTH AMERICA, INC.

Release and disconnect coolant hoses (1).

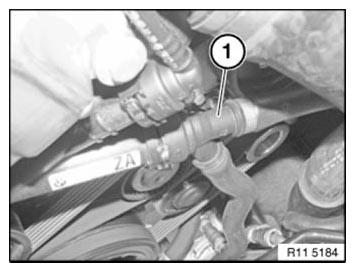

Fig 4: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove coolant line.

Fig 5: Identifying Coolant Line Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock fuel feed and return lines (1) and disconnect.

Picture shows E90.

Fig 6: Identifying Fuel Feed And Return Lines (E90)

Courtesy of BMW OF NORTH AMERICA, INC.

Secure engine wiring harness (2) on engine against falling out.

Fit special tool 11 0 020 on engine.

IMPORTANT: Pay attention to chain of special tool 11 0 020. Risk of damage.

Only raise engine at the lifting lugs (1) provided for this purpose.

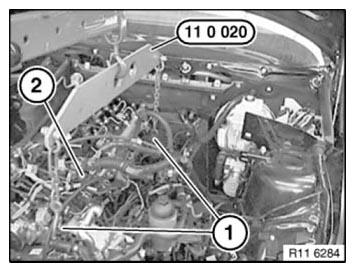

Fig 7: Identifying Special Tool On Engine (11 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) on left and right engine support arms.

Disconnect earthing cable on engine support arm.

Installation note:

Replace nuts (1).

Tightening torque, see 22 11 2AZ in 2211 ENGINE SUSPENSION .

Fig 8: Identifying Engine Support Arms Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Remove engine carefully.

Assemble engine.

Check engine oil level.
