52 16 055 Replacing an air cushion for backrest width adjustment (M3 sport pack) on left or right

Necessary preliminary tasks

• Remove REAR PANEL ON FRONT SEAT
• Partially remove BACKREST COVER

Color coding for air cushion, backrest width adjustment:

1. Yellow air hose = air supply, left air cushion for backrest width adjustment
2. Brown air hose = air supply, right air cushion for backrest width adjustment

Unlock and detach quick connector from yellow or brown air hose (1) or (2).

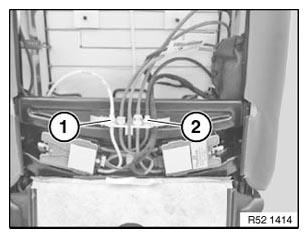

Fig 1: Identifying Yellow/Brown Air Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip carrier for backrest width adjustment from backrest frame.

Feed carrier with air hose out of backrest frame.

Installation:

Make sure the carrier for backrest width adjustment is fitted correctly on the backrest frame.

Install air hoses without kinks.

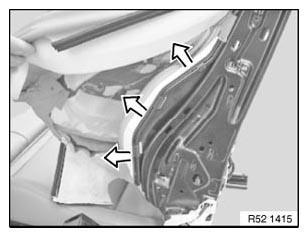

Fig 2: Feeding Carrier With Air Hose Of Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.
