12 42 510 Replacing battery positive lead (between starter and B+ terminal) (S65)

WARNING: This page is about a different variant/trim than selected.

Read fault memory. Switch off ignition

Disconnect battery negative lead from battery and lay to one side.

Necessary preliminary tasks

Release and raise cable duct for engine wiring harness; refer to REMOVING ENGINE WIRING HARNESS

Release nut (2) on B+ lead.

Remove B+ leads.

Installation:

Tightening torque, 12 41 1AZ

Fig 1: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp for B+ lead on cylinder no. 4.

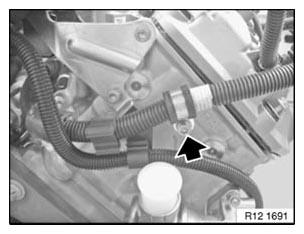

Unclip lead from cable holders.

Fig 2: Unclipping Lead From Cable Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover from B+ terminal. Unfasten nut. Remove B+ lead.

Installation:

Tightening torque, 12 42 1AZ

Fig 3: Identifying Battery Positive Lead On Battery Positive Terminal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.

Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults and clear fault memory.
