34 21 320 Removing and installing or replacing both rear brake discs
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks
- Remove WHEELS .
- Remove and clean BRAKE PADS
After completing work:
- Adjusting PARKING BRAKE
- Read and comply with notes on BRAKING IN NEW BRAKE DISCS/BRAKE PADS .
Check minimum brake disc thickness:
- Position special tool 34 1 280 GAUGE at three measuring points in area (1) and measure.
- Compare measurement result and lowest value with setpoint value.
New brake pads may only be fitted if the brake disc thickness is greater than the minimum brake disc thickness (MIN TH).
If the brake discs are replaced, you must also fit new brake pads.
Always replace brake discs in pairs.
Release bolts (1) and detach brake anchor plate.
Installation:
Tightening torque 34 21 2AZ .
IMPORTANT:
To release brake disc: Do not under any circumstances strike friction ring with a hammer or similar!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!
IMPORTANT:
Brake discs must not be mixed up (directional ventilation).

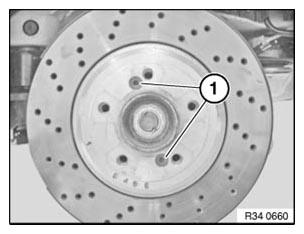

Release screws (1) and remove brake disc.
Installation:
Replace screw.
Tightening torque 34 21 1AZ .
Release screws (1) and remove brake disc.
Installation:
Replace screw.
Tightening torque 34 21 1AZ .
