34 33 071 Replacing vacuum hose for brake booster (on brake booster)

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake booster. This makes it easier to remove the vacuum hose.

Necessary preliminary tasks

Read and comply with GENERAL INFORMATION .
Remove BRAKE MASTER CYLINDER

Unlock quick-release fastener (1) and pull out vacuum line (2).

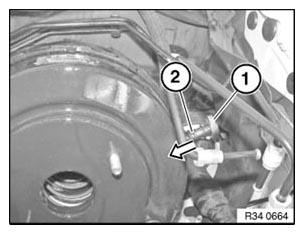

Fig 1: Pulling Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from differential pressure sensor.

Unfasten hose clip (2).

Pull off vacuum hose (3).

Pull vacuum hose (4) out of brake booster.

Feed out vacuum hose (4).

Installation:

Replace hose clamp (2).

Check sealing ring (5) in brake booster and replace if necessary.

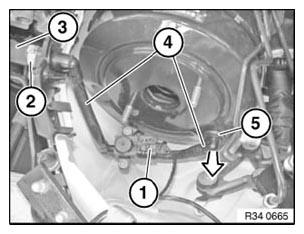

Fig 2: Removing Sealing Ring From Brake Booster
