51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left (driver side)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Detach mucket (1) in area of side trim panel (2).

Unscrew bolt (3).

Remove hood/bonnet release lever (4) from side trim panel (2).

Fig 1: Detaching Mucket In Area Of Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

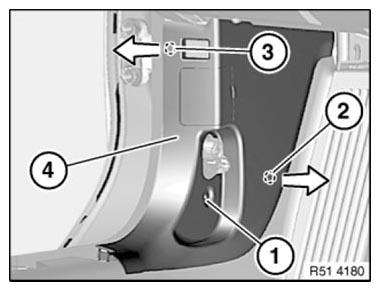

Release screw (1).

Unclip side trim panel (4) in each case in direction of arrow at retaining points (2 and 3).

If necessary, disconnect associated plug connection and remove side trim panel (4).

Fig 2: Removing Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clips (1) remaining in bore.

If necessary, replace faulty clips (1).

Position side trim panel (2) pre-installed with clips (1) on associated bores and clip into place.

Replacement

Fig 3: Identifying Side Trim Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement on right-hand drive up to model year 2005

NOTE: Because of altered locators on side trim panel and trim panel for pedals from model year 2005, the trim panel for pedals must be reworked.

Cut off ribs (1) on trim panel for pedals (2) flat with scalpel.

Fig 4: Identifying Ribs On Trim Panel For Pedals Flat
