51 16 405 Removing and installing/replacing roller sun blind on side window of left or right rear door

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Remove REAR DOOR TRIM PANEL

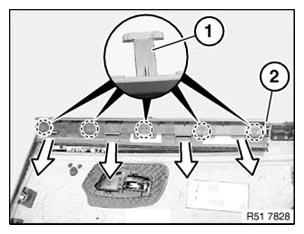

Carefully release catches (1) and remove roller sun blind (2) in direction of arrow.

Installation:

Make sure catches (1) are correctly seated.

Fig 1: Removing Roller Sun Blind

G06202506

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up handle (1) and feed out with roller sun blind (2) through frame (3).

Fig 2: Folding Handle

G04791561

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

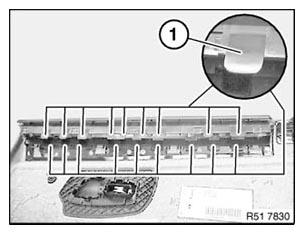

Guides (1) must not be damaged.

Roller sun blind must be correctly inserted in guides (1).

Fig 3: Identifying Guides

G06202508

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement up to build date 06/2005

NOTE: Because there are visual differences between the old and new build dates, it is necessary to replaced the left and right roller sun blinds.

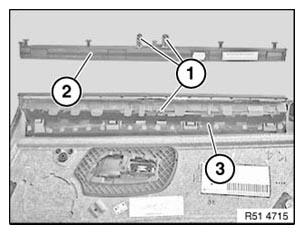

When installing roller sun blind in door trim panel (build date up to 06/2005), disconnect blocking finger (1) from roller sun blind (2) and door trim panel (3).

Fig 4: Identifying Blocking Finger, Roller Sun Blind And Door Trim Panel

G06202509

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

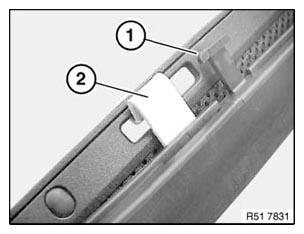

Remove clip (2) before fitting sun roller blind (1).

Fig 5: Identifying Sun Roller Blind And Clip

G06202510

Courtesy of BMW OF NORTH AMERICA, INC.
