51 71 039 Removing and installing/replacing front left or right wheel arch cover (rear section)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

If necessary, remove FRONT WHEEL

NOTE: In event of further work, where possible, leave wheel arch cover on vehicle.
Wheel arch cover must not be cut.
In case of complete removal or replacement, release SPRING STRUT .

NOTE: Front axle removed for purposes of clarity.

Release screws (1 and 2).

Release nuts (3) and loosen wheel arch cover (4) from installation position.

Installation:

Ensure wheel arch cover (4) is correctly seated.

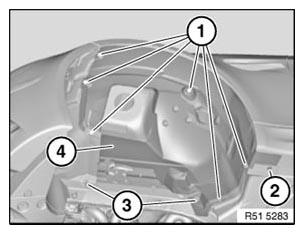

Fig 1: Identifying Wheel Arch Cover With Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify sheet nuts (1)

Installation:

If necessary, replace faulty metal nuts (1).

Fig 2: Identifying Sheet Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
