Necessary preliminary tasks

WARNING: This page is about a different variant/trim than selected.

Disconnect plug connection (1) from reversing light switch.

Release cable from retainers.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove heat shield for crankshaft pulse generator.

Disconnect plug connection (2).

Release screws (3) and (4).

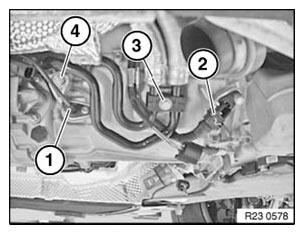

Fig 2: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unfasten screws (2).

Suspend holder (3) to one side.

Fig 3: Identifying Plug Connection, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 23 00 1AZ .

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 5: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 6: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pressure line of clutch slave cylinder remains connected.

IMPORTANT: Relieve tension on clutch slave cylinder slowly; otherwise air will be drawn in through sealing sleeve.

Fig 7: Locating Clutch Slave Cylinder Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Remove clutch slave cylinder.

Tightening torque 21 52 5AZ .
