11 53 000 Removing and installing/replacing coolant thermostat (S65)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

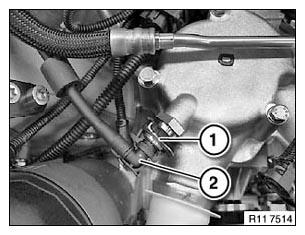

Release unlocking element (1).

Detach vent line (2).

Fig 1: Identifying Vent Line And Unlocking Element

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect FUEL LINE from fuel rail.

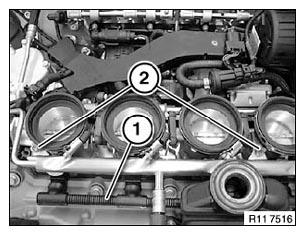

Release screws (2).

Unlock wiring harness of fuel injectors (1).

Fig 2: Identifying Fuel Injectors And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

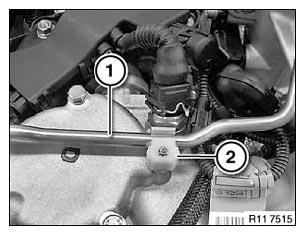

Clip injection pipe (1) out of holder (2).

Lay injection pipe, cylinders 5 to 8, to one side.

Fig 3: Identifying Injection Pipe And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

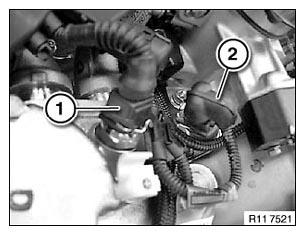

Disconnect plug connection (1) on coolant temperature sensor.

Disconnect plug connection (2) on solenoid valve.

Fig 4: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock coolant hoses and detach.

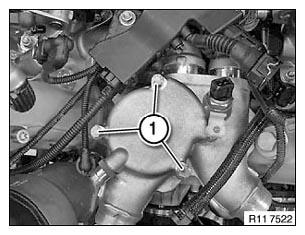

Release screws (1).

Installation:

Replace sealing rings.

Fig 5: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

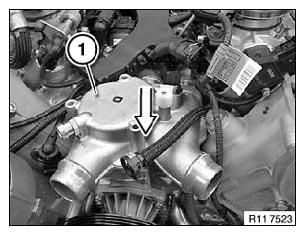

Remove thermostat housing with thermostat forwards in direction of arrow.

Clean sealing surfaces.

Fig 6: Removing Thermostat Housing

Courtesy of BMW OF NORTH AMERICA, INC.

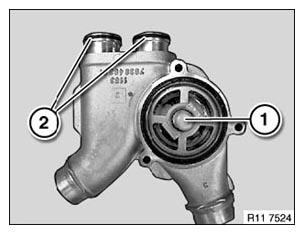

Remove thermostat (1).

Check rubber section (2) for damage.

Remove connecting pipes (2).

Installation:

Replace all O-rings on connecting pipes.

Fig 7: Identifying Connecting Pipes And Thermostat

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Vent COOLING SYSTEM and check for leaks.
