65 13 080 Removing and installing/replacing speaker (tweeter in rear door)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Disconnect plug connection (1) and remove cable (2) from mounting.

Release plastic nut (3) in counterclockwise direction and feed out speaker (4).

Installation:

Do not place plastic nut (3) on thread at a skewed angle.

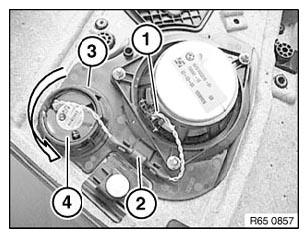

Fig 1: Releasing Plastic Nut

Courtesy of BMW OF NORTH AMERICA, INC.
