31 21 090 Replacing (removing and installing) left or right swivel bearing (M3)
Special tool 31 5 230 only be removed after the bolt connection has been tightened down!
Necessary preliminary tasks
- Remove FRONT BRAKE DISC
Slacken nut (1).
Remove jointed rod (2) from control arm.
Installation:
Sensor lever (3) must point from ride-height sensor to left front wheel.
Tightening torque 37 14 3AZ .
Remove CONTROL ARM FROM SWIVEL BEARING .
Remove TIE ROD END FROM SWIVEL BEARING .
Remove TENSION STRUT FROM SWIVEL BEARING
Support swivel bearing with workshop jack and a suitable mounting.

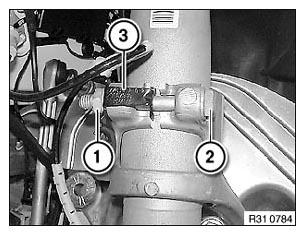

Release nut (1), remove holder (3) and remove screw (2).
Installation:
Screw head must point in direction of travel.
Remove special tool 31 5 230.
Replace self-locking nut.
Tightening torque 31 31 3AZ .

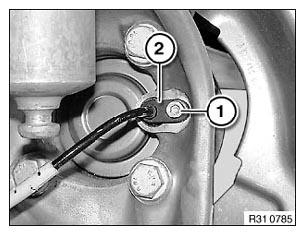

Release screw (1).
Remove pulse generator (2) from swivel bearing.
Installation:
Clean bore hole for pulse generator and grease with Staburags NBU 12/K lubricating grease.
Tightening torque 34 51 4AZ .

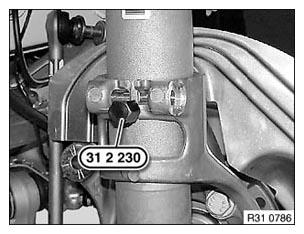

Spread swivel bearing with special tool 31 2 230 SOCKET .
Lower workshop jack and remove swivel bearing.
Installation:
Keep press fit of swivel gearing and spring strut in lower area clean and free from oil and grease.
Special tool 31 5 230 only be removed after the bolt connection has been tightened down!
Installation:

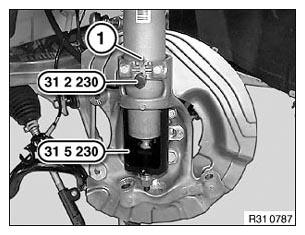

Spread swivel bearing with special tool 31 2 230 SOCKET , align by means of gap to web (1) on back of spring strut and push upwards.
Pull swivel bearing with special tool 31 5 230 up to stop (tightening torque = 20 Nm).
Remove special tool 31 2 230 SOCKET .
Replacement
- Modify WHEEL BEARING
- Modify BRAKE CARRIER/BRAKE GUARD PLATE
After installation
- Replacement: Perform chassis alignment check See 3200150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 3200155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD
