51 16 366 Removing and installing right glove box (with airbag) with housing
Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
Do not carry out any repairs on airbag module!
Always replace the passenger protection airbag module completely!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
- Microencapsulated screws must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE CABLE .
- Open glove box.
Version with can holder:
- Remove both front CUP HOLDERS at the front.

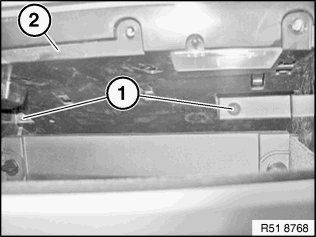

Release screws (1).
Release screws (1).
Replace micro-encapsulated screws (1).
Tightening torque 72 12 8AZ .
Pull out glove box (2) slightly.

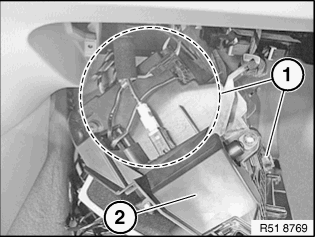

Disconnect plug connections (1) and feed cable out of guides.
Depending on the version, disconnect additional plug connections.
Remove the glove box (2).
Installation note:
Guides (1) for glovebox must not be damaged or missing.
Version with can holder:
Guides (2) for cup holders must not be damaged or missing.
