64 22 165 Removing and installing/replacing center fresh-air grille
Special tools required:
NOTE:
For special tools, refer to HEATING & AIR CONDITIONING - SPECIAL TOOLS - 645CI (E63)
.
- 00 9 341
Necessary preliminary tasks:
- Remove switch for hazard warning system/central locking, refer to 61 31 079 REMOVING AND INSTALLING/REPLACING SWITCH FOR HAZARD WARNING SYSTEM/CENTRAL LOCKING .

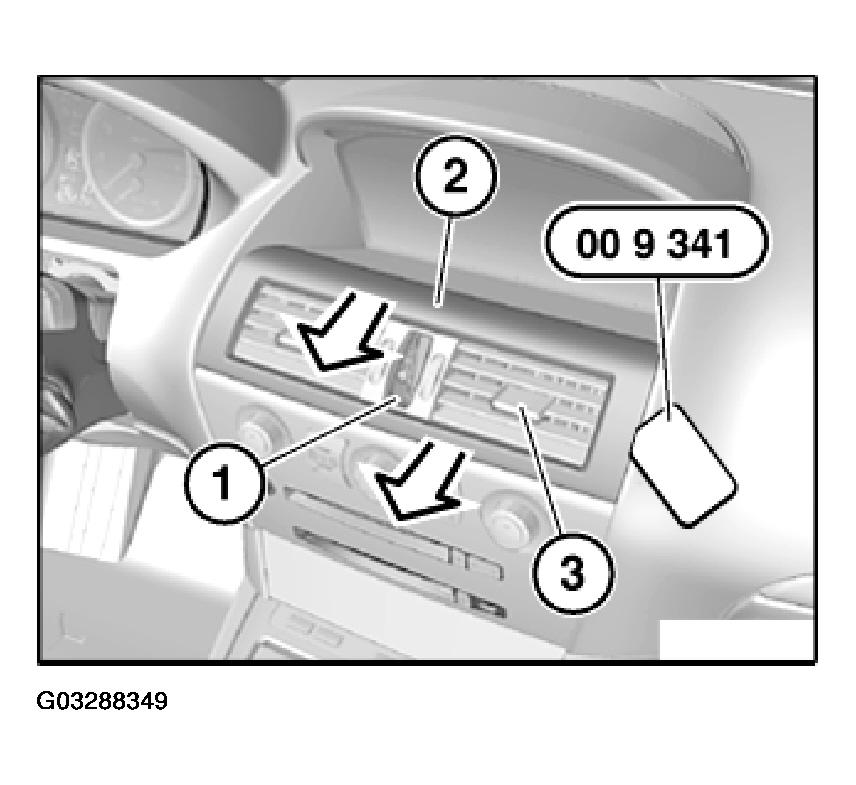

Release screw (1).
Partially fit special tool 00 9 341 as illustrated.
Lever out trim for center instrument panel (2) completely with center fresh-air grill (3) all round and remove.
Replacement:

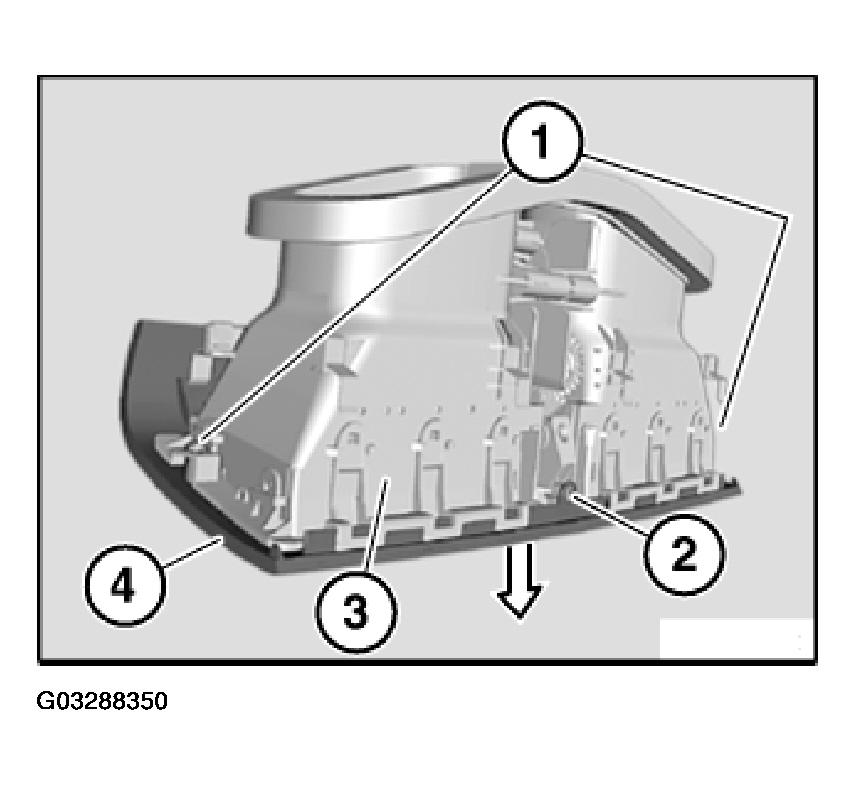

Release screws (1) and (2).
Remove trim for center instrument panel (4) in direction of arrow from center fresh-air grill (3).
Installation:
Make sure trim for center instrument panel (4) is correctly seated in associated mounts of center fresh-air grill (3).
