64 53 517 Replacing desiccant insert for A/C system (condenser removed)

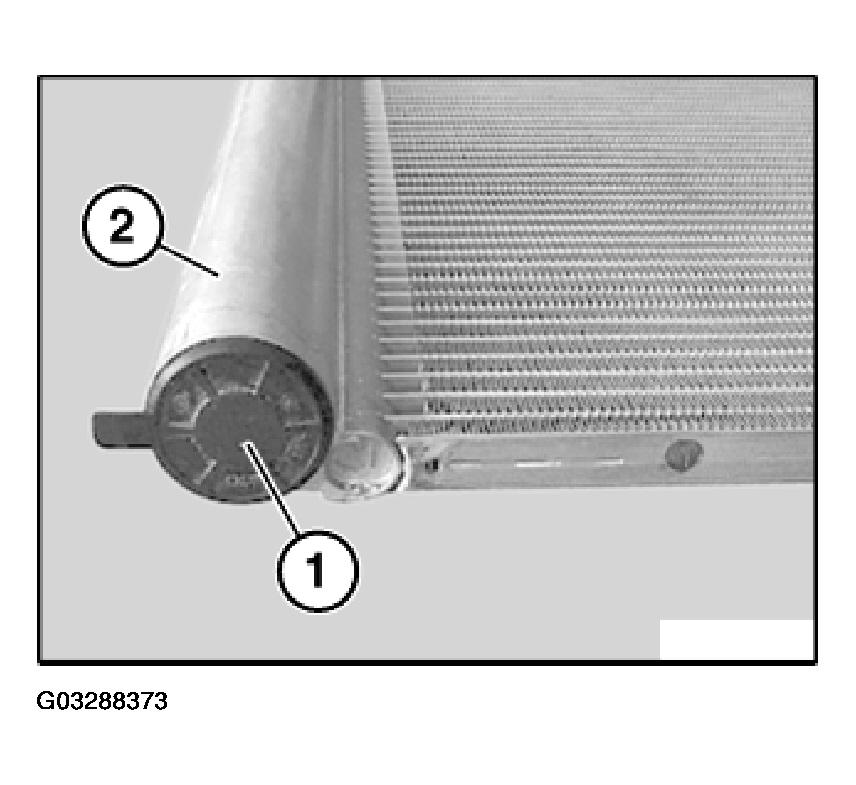

Remove cover cap (1) from condenser (2).

Fig 1: Removing Cover Cap From Condenser

Courtesy of BMW OF NORTH AMERICA, INC.

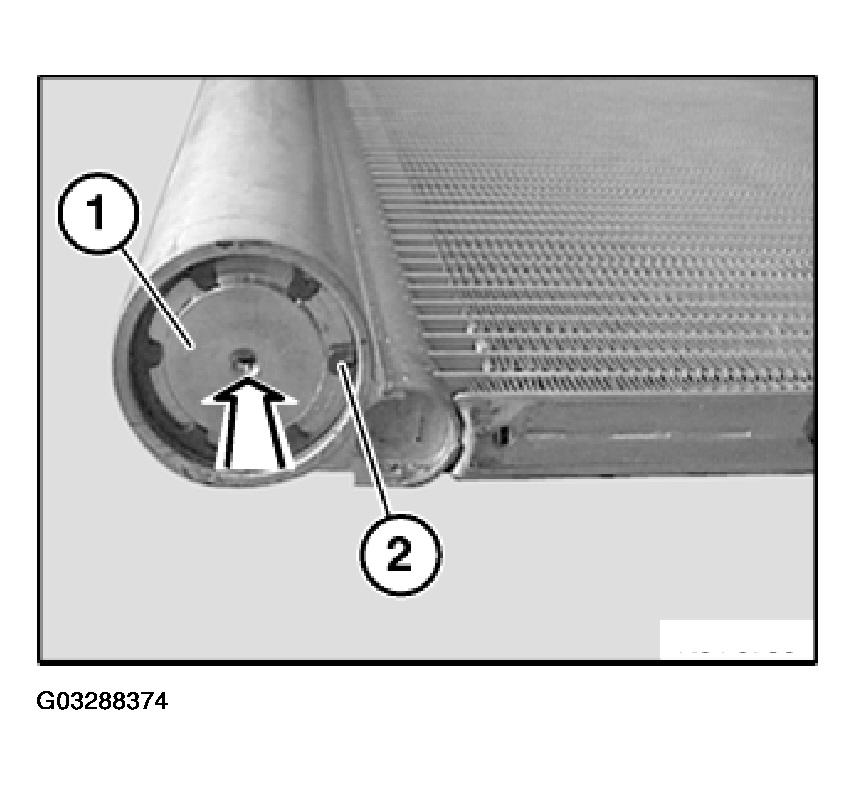

Press sealing cap (1) inwards and remove Seeger circlip ring (2).

Fig 2: Pressing Sealing Cap Inwards Remove Seeger Circlip Ring

Courtesy of BMW OF NORTH AMERICA, INC.

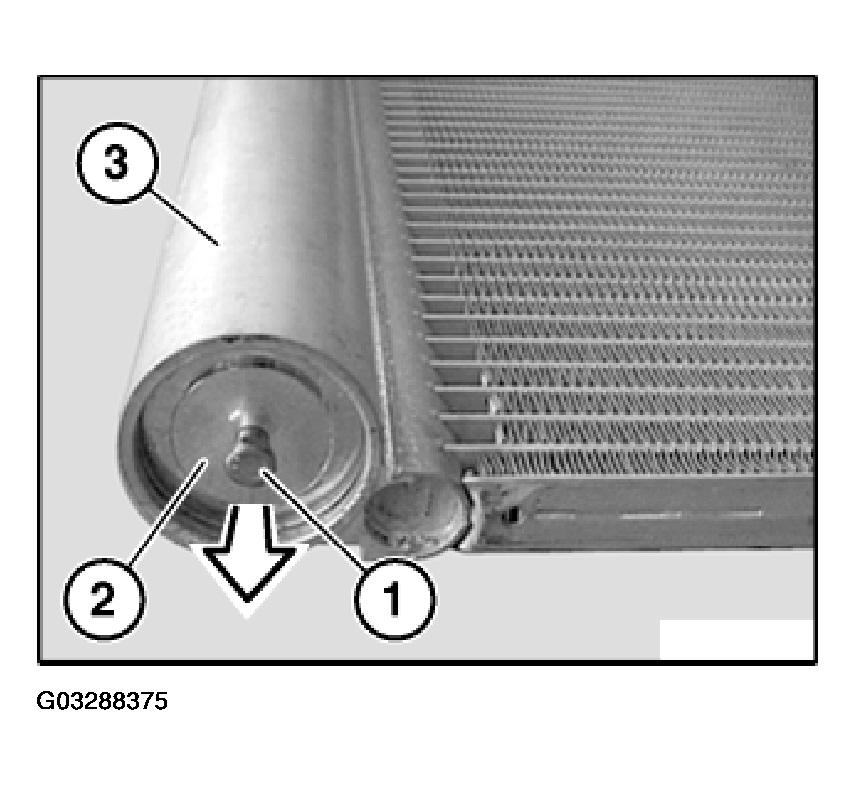

With assistance of a screwed-in screw (1), remove sealing cap (2) from condenser (3).

Fig 3: Removing Sealing Cap From Condenser

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

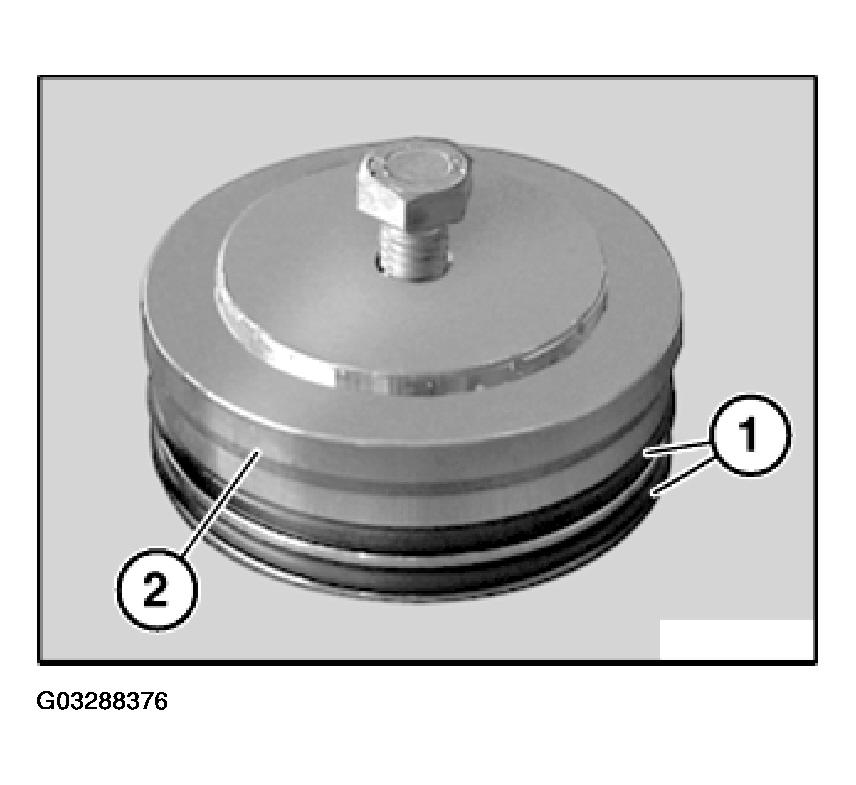

Replace sealing rings (1) of sealing cap (2) and coat with suitable refrigerant oil (cf. EPC).

Fig 4: Installing Sealing Rings Of Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

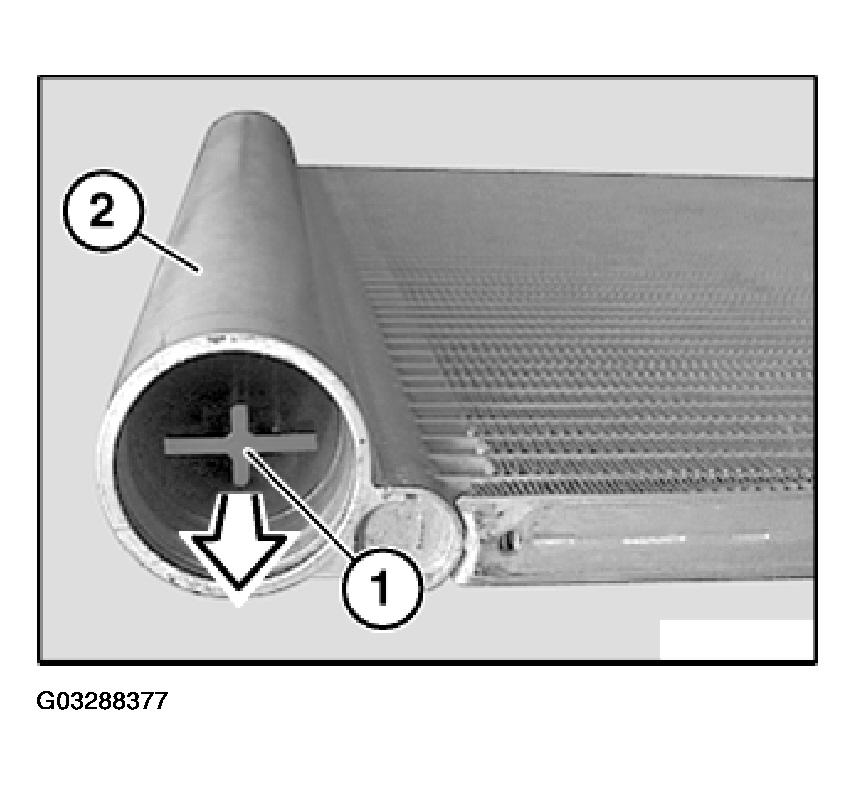

Withdraw desiccant insert in direction of arrow from capacitor (2).

Fig 5: Inserting In Direction Of Arrow From Capacitor

Courtesy of BMW OF NORTH AMERICA, INC.
