Intake Manifold - Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Top Diagram

Remove plug connections on the throttle assemblies (1).
Detach engine vent hoses from pressure control valves (2).
Detach outside braces for intake manifold (3 L/R).

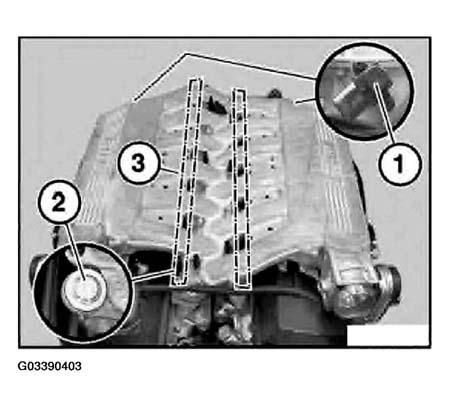

Fig 1: Illustration Steps-1, 2 And 3
Courtesy of BMW OF NORTH AMERICA, INC.

Lower Diagram

Remove plug connections on the intake manifold pressure sensors (1 L/R).
Remove bolts (2) along sections (3).
Lift intake manifold up to remove.

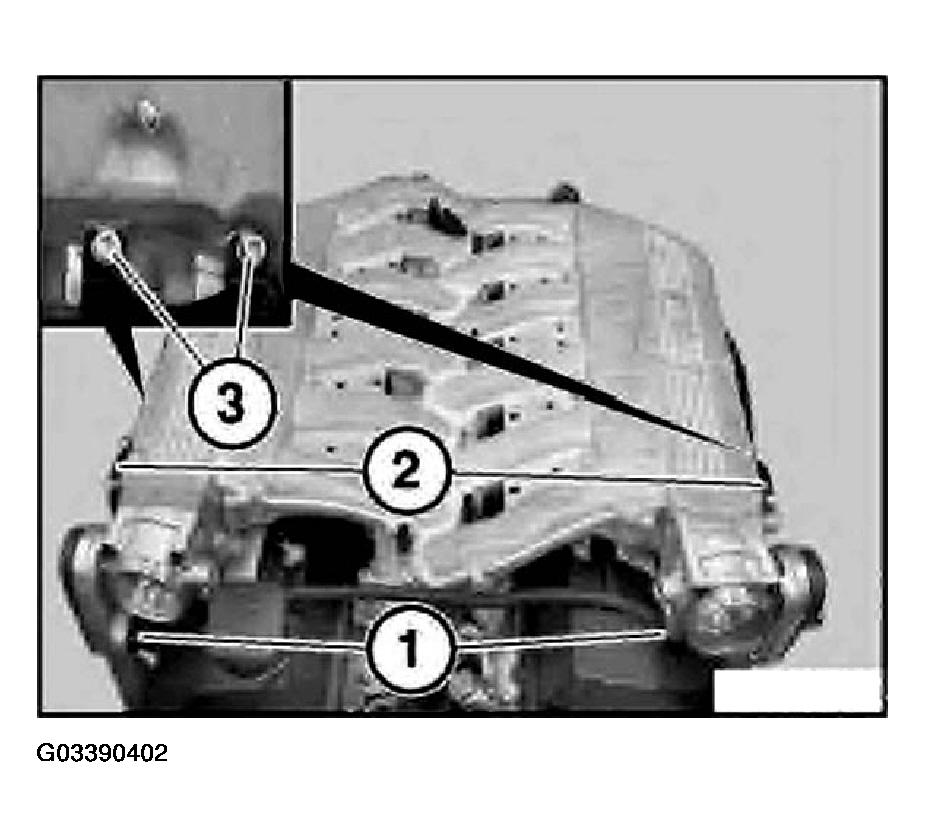

Fig 2: Illustration Steps-1, 2 And 3
Courtesy of BMW OF NORTH AMERICA, INC.
