Cylinder Head Cover (Right) - Removal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not bend any high pressure lines!

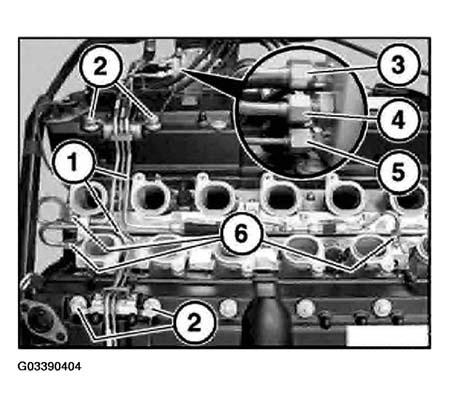

Top Diagram
- Detach high pressure lines (1) at mounting points (2).
On high pressure pump:
- Detach feed line (3).
- Detach high pressure line (4).
- Detach leakage line (5).
- Detach high pressure lines from fuel rail (6).

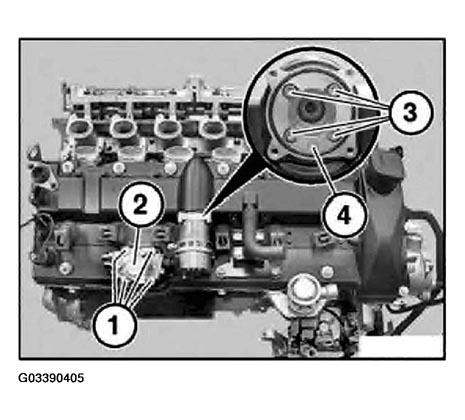

Lower Diagram
- Remove Valvetronic motor.
- Remove mounting bolts (1) and high pressure pump (2).
- Remove bolts (3) and pull out spacer (4).
- Remove Non-Return Valves and cylinder head cover perimeter bolts.
